No.000005 Soldering Fixture

Soldering fixture that can accommodate different sized work pieces.

Ceramic Plate

Product name Ceramic Plates
Part number CEA-10-10-2.5
Features Ceramics Plates excellent in insulation and heat/corrosion resistance.
* Orange colored cells in the table below indicate the part numbers used in this example.

Selection criteria

Insulate fixture from soldering heat.

Back to page top

Available sizes

Ceramic Plates

Material Finish accuracy Color Operating Ambient Temperature External dimensions Hole machining
Long side Short side Plate thickness Number of holes Hole DIA. Long side hole pitch Short side hole pitch
(Configure in 1mm increments) (Configure in 0.5mm increments)
Alumina 96 Standard grade White Room temperature ~ 1000 ℃ 10~200 10~100 1, 2, 2.5 No hole,
2 Holes,
4 Holes
φ3.5, φ4.5, φ5.5, φ6.5, φ9, φ11 9~191 5~95(2 Holes),
9~91(4 Holes)
Precision grade
(Top/bottom machined)
10~100 10~100 9~91
Steatite Standard grade White Room temperature ~ 1000 ℃ 10~70 10~70 3, 5 9~61 5~65(2 Holes),
9~61(4 Holes)
Precision grade
(Top/bottom machined)
Machinable
ceramic
Standard grade Natural color Room temperature ~ 1000 ℃ 10~200 10~100 1, 2, 2.5 9~191 5~95(2 Holes),
9~91(4 Holes)

*Please see the product pages for shape details and dimensions.

Back to page top

Accuracy Info

Ceramic plate accuracy standards

Finish accuracy Plate thickness parallelism
(Per 100mm)
Flatness
(Per 100mm)
Standard grade 0.1 0.1
Precision grade 0.05 0.05

Back to page top

Toggle Clamp

Product name Toggle Clamps - Horizontal Handle, Horizontal or Vertical Base Push-Pull Type
Part number MC03-S1
Features Small clamps for light-duty operations with thehorizontal handle.
* Orange colored cells in the table below indicate the part numbers used in this example.

Selection criteria

Clamping force, toggle clamp type (horizontal mounting bracket and handle).

Back to page top

Available sizes

Toggle Clamps - Horizontal Handle, Horizontal or Vertical Base Push-Pull Type

Material Main body: 1018 Carbon Steel/
Rubber tipped bolt: NBR
304 Stainless Steel
Surface treatment Main body: Trivalent chromate/
Shaft: Nickel plating
-
Clamp handle Fore/Aft rotation Right rotation Left rotation Fore/Aft rotation
Stroke(mm) 17 16 17
Clamping force(N) 450 500 450
Weight(g) 50 65 50
Handle open/close angle 190° 180° 190°
Overall width (Clamped) 27 57 27
Overall height (Clamped) 43.5 17 43.5
Tip screw M4 bolt with rubber M4 bolt with rubber M4 stainless steel bolt
Overall length (Clamped) 73.9 81.5 73.9
Overall length (Unclamped) 56.9 65.5 56.9
Push axis height 12.7 10 12.7

* Please see the product pages for shape details and dimensions.

Back to page top

IDEA NOTE Retention is stabilized with linear guide

Linear guide is used to stabilize motion and retention of workpiece.

IDEA NOTE Ceramic material is used for insulation.

Ceramic is used for insulation purposes during soldering.

  • TERMS AND CONDITIONS FOR USE OF CAD DATA
    Your access to the CAD data that MISUMI Corporation (hereinafter referred to as the Company) posts on this site (including 3D CAD data, intermediate 3D CAD data and 2D CAD data; hereinafter referred to as the Data) are of products manufactured and/or sold by the Company (hereinafter referred to as the Products) assumes that you have read and accepted these terms and conditions which govern your use of the Data. If you do not agree to these terms and conditions, you must stop using this website and the Data. You must not use the Data for any unlawful purpose or in any manner inconsistent with these terms and conditions.
    1. CAD Data
    The Data is prepared for assisting the Company's users in the CAD design process by providing dimensions and other Product information. In order to provide the best speed and stability working within this site, the Product drawings were simplified to reduce the size of the Data. For instance, some of the Products are shown without the oil groove shape, screws or spring shape. Also, please be aware that the tolerance, surface roughness and/or chamfer of the Data may vary from the actual Products.
    2. Disclaimer on Data
    While the Company has carefully prepared the Data, accuracy of the Data is not guaranteed and is subject to the variances as described above. The Company may also modify, add or delete the Data at any time without prior notice. The Company assumes no liability for any direct, indirect, consequential or special damages that you may claim resulted from your use of the Data or any changes to or deletions of the Data regardless of the reason. The Company provides no warranty as to the quality, accuracy, functionality, safety or reliability of the combination of Products and parts. Example applications and combinations of the Products are provided for illustrative purposes only.
    3. Copyright
    Copyrights to the content and the Data belong to the Company or the manufacturers of the Products. The said copyright is protected by the Copyright Act and international treaties. The use (including duplication, modification, uploading, posting, transmission, distribution, licensing, sales and publishing) of the Data except for the purpose to use the Data described above without prior approval of the Company is not allowed. The Data cannot be used for any purposes (including sales promotion) except for designing your machine. If you violate this provision or the laws or regulations, the Company may prohibit you from the use of the Data, the Company’s site and/or take legal action. So long as you comply with these terms and conditions, the Company grants to you a non-exclusive, non-transferable, revocable license to access and use the Data for the sole purpose of assisting you in designing machines that incorporate products.
    In case that the CAD data is found to have been to be used for any purpose other than mentioned above or against the related laws, MISUMI may take legal actions, including the one for blocking the involved user from using CAD data and from accessing to the MISUMI site.
    4. Disclaimer of Warranty
    ANY AND ALL CONTENT APPEARING ON THIS WEB SITE IS PROVIDED FOR INFORMATIONAL PURPOSES ONLY. THIS WEB SITE, ITS CONTENT AND ITS LINKS ARE PROVIDED ON AN "AS IS" AND "AS AVAILABLE" BASIS AND ARE USED ONLY AT YOUR SOLE RISK, TO THE FULLEST EXTENT PERMISSIBLE BY LAW. THE COMPANY DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, OF ANY KIND, REGARDING THIS WEB SITE (INCLUDING ITS CONTENT, HARDWARE, SOFTWARE AND LINKS), INCLUDING AS TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, TITLE, NON INFRINGEMENT, RESULTS, ACCURACY, COMPLETENESS, ACCESSIBILITY, COMPATIBILITY, SECURITY AND FREEDOM FROM COMPUTER VIRUS. THE COMPANY WILL NOT BE LIABLE FOR ANY DAMAGES OR LOSSES, INCLUDING DIRECT, INDIRECT, CONSEQUENTIAL, SPECIAL, INCIDENTAL OR PUNITIVE DAMAGES AND/OR LOST PROFITS, IN CONNECTION WITH USE OF THE INTERNET, THIS WEB SITE, ITS CONTENT OR ITS LINKS
    Further, the Company will not be liable to you for any failure or delay by the Company to provide access to the Data or any of its obligations under these terms and conditions where such failure or delay is the direct or indirect result of any circumstances beyond the Company's reasonable control (and the Company's obligations will be suspended for the duration of such circumstances).

    CAD Download (Unit Assembly)

    CAD Download: File Format
    生成

    Thank you for downloading the data.

    Click the Good IDEA! button when you find interesting design tips.


    This data is utilized in order to list more useful application examples in the future.

    CAD Data Limitations

    1. Assembly data shows the assembly drawings in the concept design phase. The sole purpose of the data is to explain the structure and functionality of the assembly and is not considered nor to be used as a final design.
      You will need to edit the Data so that it meets your specific design conditions.
    2. Unit assembly Data consists of some sub-assemblies.
      It is configured so that each sub-assembly unit can be used as it is or edited.
    3. * The part in the frame is a sub-assembly unit.

    4. The Data for fabricated parts is based on easy-to-edit dimensions and shapes in sketches and histories.
    5. The Data including the third-part components are made by the Company.

    Page top

  • * Unit assembly Data consists of some sub-assemblies.
       It is configured so that each sub-assembly unit can be used as it is or edited.
  • Application Overview

Purpose

  • Retaining fixture to accommodate various sizes of workpiece for soldering.
  • The left side is the fixed side, and the right side is the clamp side.
  • Soldering of difficult to work on positions.

Points for use

  • A manually operated mechanism with a toggle clamp on each side. The left side of fixture is fixed while the right side is adjustable.
  • The part that contacts the workpiece is of ceramic to ensure insulation.

    Refers to porcelain in general or can be referred to a sintered body where material base component is a metal oxide baked by a high temperature process.

Target workpiece

  • Molded plastic product
    External dims.: W130 x D22 x H25
    Weight: 40g

Design Specifications

Operating Conditions or Design Requirements

  • Toggle clamp stroke: 17mm (Both sides)
  • Right side clamp uses spring
  • External dimensions: W150 x D235 x H37

Required Performance

  • Workpiece retention load: 4.9N
  • Workpiece dimensional variation: ±0.3mm

Selection Criteria for Main Components

  • Toggle clamp
    • Side push type is selected for horizontal operation.
    • The toggle clamp selected has sufficient clamping force for the application.
  • Linear guide
    • Since applicable moment load is small,select a type most suitable for the size of the fixture.
  • Ceramic plate

    Refers to porcelain in general or can be referred to a sintered body where material base component is a metal oxide baked by a high temperature process.

    • To ensure insulation.

Design Evaluation

Verification of main components

  • Select a spring that offers sufficient retention load.
  •  Spring load
    • Calculation formula: Reaction force F = kx
    • Assumed load: F = 4.9N
    • Set length: 19mm, Free length: 20mm
    • Assumed deflection under pressure: x = 5mm (1mm when set, 4mm when stroked)
    • Spring constant: k = 4.9 / 5 = 0.98N/mm is selected

Other Design Consideration

  • A linear guide is used to stabilize the horizontal movements of the toggle clamps.
  • To properly set up right hand side of fixture, a toggle clamp is using floating joint for length adjustment.
  • The clamp plate on the clamp side (Right) is in free state to be able to absorb varying workpiece dimensions.

Explore Similar Application Examples

Page - / -

Part List

No. Part Name Sample Picture MISUMI Part Number
(click the Part Number below for details)
Quantity
1 Linear Guides SSEBMZ8-55 2
2 Compression Springs UL6-20 1
3 Ceramic Plate CEA-10-10-2.5 2
4 Floating Joints FJDL4-0.7-4-9 1
5 Toggle Clamps MC03-S1 2
6 Dowel Pins MSC3-10 4
7 Socket Head Cap Screws-with Washer SCBS4-20 6

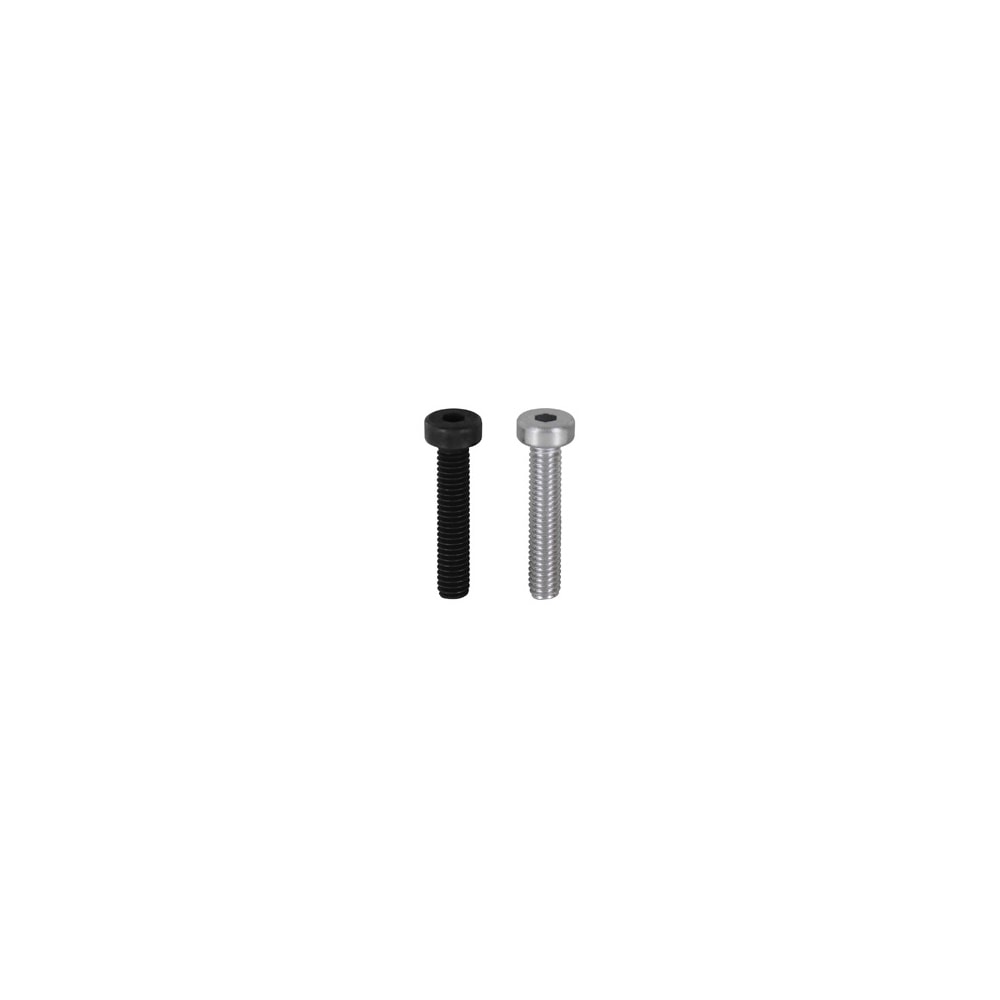

8 Low Head Cap Screws CBSST4-8 2
9 Extra Low Head Cap Screws CBSTS3-8 2
10 Metal Washers WSSS12-5-1 3
  • The part list above only contains MISUMI parts.
    Part list download (CSV) includes MISUMI and third party components used in this example.
