Workpiece Inversion Device 2

Specifications and Features

Purpose/Function

Transport/Movement

A device that flips workpieces with distinct front and back sides and transfers them to a conveyor for subsequent processing.
Often used to rotate workpieces in the opposite direction to shorten production intervals.
Widely applied in the automotive and electronic components, medical device processing and manufacturing industries.

※ This example is for design reference only. Equipment components may differ from the actual shape.

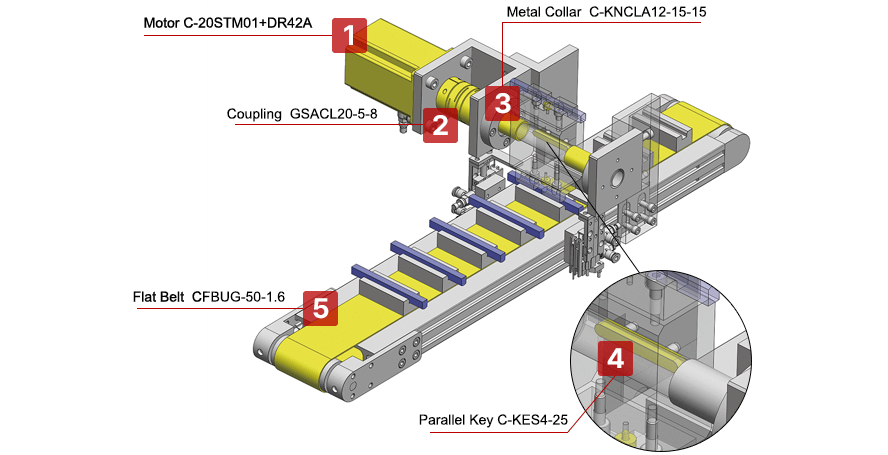

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Motor	C-20STM01+DR42A	Type: Motor + Driver 20 series Motor length: 33mm Lead wires: 4 Holding torque: 0.018N·m	1	SGD 80.60/Unit
②	Coupling	GSACL20-5-8	Groove type Outer diameter (φ): 20mm Shaft hole diameter D1(φ): 5mm Shaft hole diameter D2(φ): 8mm	1	SGD 14.87/Unit
③	Metal Collar	C-KNCLA12-15-15	Inner diameter: 12mm Outer diameter: 15mm Thickness/Length: 15mm	2	SGD 1.64/Unit
④	Parallel Key	C-KES4-25	Shape: Rounded on both ends Width: 4mm Total length: 25mm	1	SGD 0.41/Unit
⑤	Flat Belt	CFBUG-50-1.6	Surface material: Polyurethane Belt width W: 50mm Circumference length: 1.6m Surface cover: Green glossy surface	1	SGD 12.58/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Stepper Motors 20 Series SGD 38.10 /Unit Shipping: 5 Days

2 Slit Couplings Long, Set Screw Type SGD 12.89 /Unit Shipping: Same Day

3 Collars SGD 0.76 /Unit Shipping: Same Day

4 Parallel Keys Straight / Round at One End / Round at Both End SGD 0.33 /Unit Shipping: Same Day

5 Flat Belts For General Use SGD 8.50 /Unit Shipping: 8 Days

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
