Parallel Keys Straight / Round at One End / Round at Both End

Brand :

MISUMI

Caution

Product Description

This is an economy item, The price is cheaper than the MISUMI standard product.

Product Overview

Parallel key
A key that relies on two side surfaces as working surfaces, and transfers torque by pressing the sides of the key and the keyway.

Product photo
(Economy series) Parallel key Type A Type B Type C GB/T1096

(Economy series) Parallel key Type A Type B Type C GB/T1096

Dimensional Drawing

Material Specifications

Type			Material	Tensile Strength
Round at Both Ends Shape A	Straight Shape B	Round at One End Shape C	Material	Tensile Strength
C-KES	C-KED	C-KEG	Steel Material	500 N/mm² or above
C-KESF	C-KEDF	C-KEGF	Steel Material	500 N/mm² or above
C-KESH	C-KEDH	C-KEGH	Steel 25 to 30HRC	600 N/mm² or above
C-KESS	C-KEDS	C-KEGS	Stainless Steel	500 N/mm² or above

Specification Table

Part Number			Total length L																											H Tolerance		C
Type	Width Bh9		Total length L																											H Tolerance		C
C-KES C-KESF C-KESH C-KESS (Double Round Head Type A) C-KED C-KEDF C-KEDH C-KEDS (Straight-through Type B) C-KEG C-KEGF C-KEGH C-KEGS (Single Round Head C Type)	2	0 -0.025	6*	8*	9	10*		12	15*																					2	0 -0.025	0.16 to 0.25
	3	0 -0.025	6*	8*		10		12	15*	16*	18*	20			25		30*													3	0 -0.025
	4	0 -0.030		8*		10		12	15*	16	18*	20			25		30*			40*		50*								4	0 -0.030
	5					10	11	12	15*	16	18	20	22*		25	29	30		35	40	45*	50		60*						5		0.25 to 0.40
	6					10*		12*	15*	16*	18*	20	22		25	28*	30	32*	35*	40*	45*	50*		60*						6
	7	0 -0.036													25*															7	0 -0.090
	8					10*		12	15	16	18*	20*	22*	24	25	28*	30	32*	35*	40*	45*	50*	55*		70*		80*	90*		7
	10											20			25		30		35	40	45	50		60	70	75	80	90	100	8		0.40 to 0.60
	12	0 -0.043										20			25		30		35	40	45	50	52	60			80	90		8
	14																		35	38										9
	18																								70				120	11	0 -0.110
	20	0 -0.052																						67						12		0.60 to 0.80
	22	0 -0.052																			45									14		0.60 to 0.80

The specification table with * symbol size indicates the applicable range for C-KES

Key Tolerance

Product Features

Parallel key, is a key that relies on two side surfaces as working surfaces, and transfers torque by pressing the sides of the key and the keyway.
Parallel keys are divided into three types: standard parallel keys, thin parallel keys, guiding parallel keys.
Standard parallel keys have good centering, high positioning accuracy and easy assembly, but they cannot achieve axial fixation of parts on the shaft. They are used for shafts that are high-speed or subjected to impact and variable loads;
Thin parallel keys are used for thin-walled structures and places where the transmission torque is small; guiding parallel keys are used to fix the keys on the shaft with screws, and are used for occasions where the parts on the shaft do not move much along the shaft.

Precautions

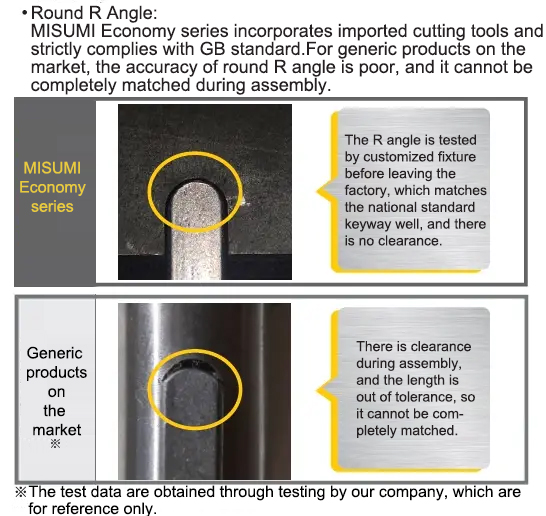

1) When the keyway is used in conjunction with the parallel key, if the clearance is too large, the parallel key will not fix completely due to loosening.
2) When the keyway and the parallel key are used too tightly, the parallel key cannot be installed in the keyway.

(Economy series) Parallel key Type A Type B Type C GB/T1096

Example of Use

Example of using parallel key
(Economy series) Parallel key Type A Type B Type C GB/T1096
