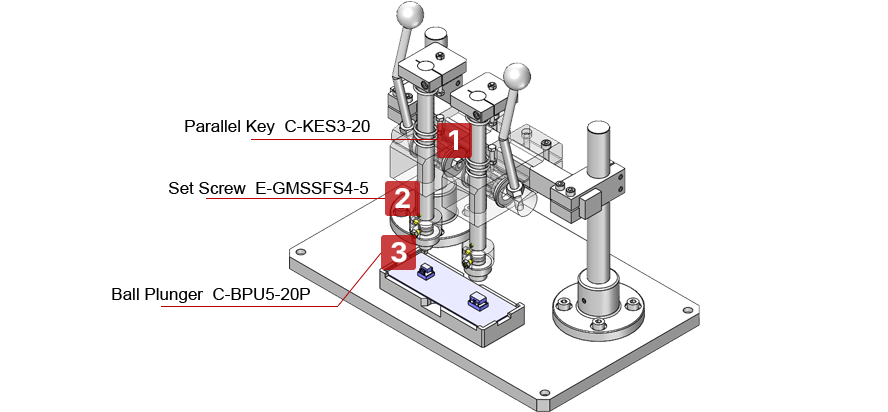

Different Position Press-Fit Jig

Specifications and Features

Purpose/Function

Positioning/Clamp Set up

Manual assembly for small-volume production, installing operational amplifiers into sockets set on the circuit board.
Maintain the pressing direction even when changing position by using a square support.
Consider preventing rotation of the circular rack if you want to maintain the angle of the tip jig.
Rack and pinion mechanism that achieves 50 [N] of pressure with an operating load of 10 [N] or less.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Parallel Key	C-KES3-20	Shape: Parallel key (rounded on both ends) Width (mm): 3 Total length (mm): 20 Material: Steel	2	SGD 0.34/Unit
②	Set Screw	E-GMSSFS4-5	Screw nominal (M): 4 Length L(mm): 5 Material: Stainless steel RoHS10 compliant	2	SGD 0.04/Unit
③	Ball Plunger	C-BPU5-20P	Material: Steel (body), Stainless steel (ball) Outer diameter M(mm): 5 Stroke (S)(mm): 1 Load range (N): 3~10	4	SGD 10.78/Unit
