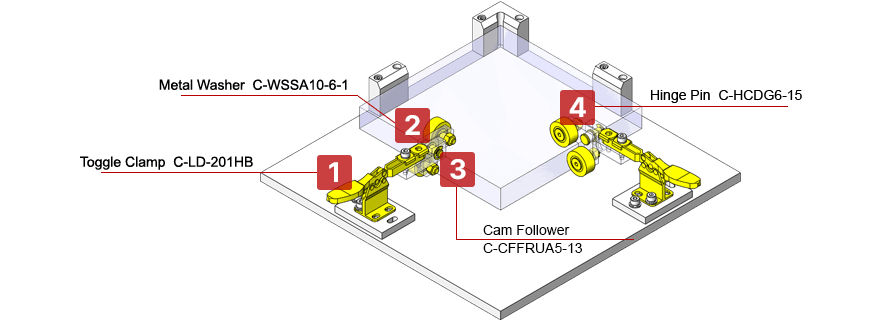

Simple Clamp for L-Shaped Roller Head

Specifications and Features

Purpose/Function

Positioning/Clamp Setup

" Install rollers in an L-shape to clamp in two directions.
When clamping, the upper roller contacts the workpiece first, then the side roller contacts the workpiece's side.
The roller head's inclination is regulated to allow the roller on the workpiece surface to make initial contact before smooth clamping. "

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Toggle Clamp	C-LD-201HB	Clamp bolt size: M5 Material: Steel (body), Steel + rubber pad (bolt) Clamping pressure (N): 400	2	SGD 2.46/Unit
②	Metal Washer	C-WSSA10-6-1	Outer diameter D(mm): 10 Inner diameter V(mm): 6 Material: Steel Surface treatment: Trivalent chromate bright finish	2	SGD 0.38/Unit
③	Cam Follower	C-CFFRUA5-13	Screw part nominal (M)(mm): M5×0.8 Material: Carbon steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): Allowable rotational speed (rpm): 1500	4	SGD 25.80/Unit
④	Hinge Pin	C-HCDG6-15	Shaft diameter D(mm): 6 L dimension (mm): 15 Material: Steel Surface treatment: Black oxide coating	2	SGD 1.68/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Toggle Clamps Horizontal, Hold Down Pressure 400N, Standard SGD 2.46 /Unit Shipping: Same Day

2 Flat Washers SGD 0.35 /Unit Shipping: Same Day

3 Urethane Coated Cam Followers SGD 24.51 /Unit Shipping: Same Day

4 Pivot Pins Shouldered With Retaining Ring Groove SGD 1.00 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
