Wire Transfer Mechanism

Specifications and Features

Purpose/Function

Transport/Move Positioning/Clamp Setup

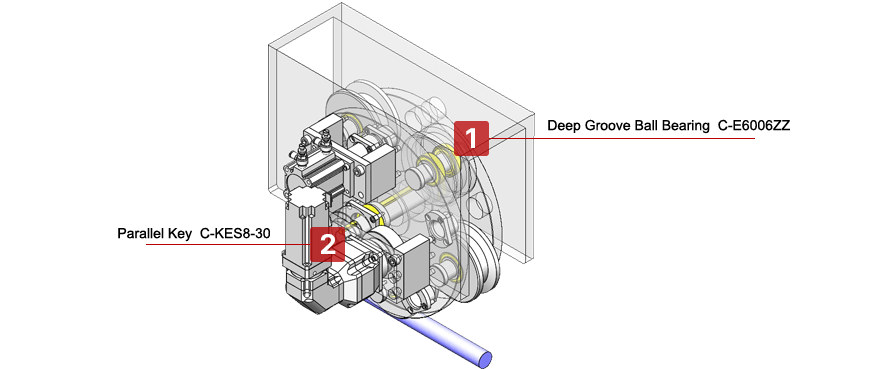

"Guide mechanism for sending different types of wires.
Can handle 5 types of wires, with servo motors adjusting the guide roller position to suit each workpiece type.
Once the position is changed, secure it with a stopper pin using a cylinder.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Deep Groove Ball Bearing	C-E6006ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 9240 Allowable rotational speed (RPM): 8000	12	SGD 2.82/Unit
②	Parallel Key	C-KES8-30	Shape: Parallel key (rounded on both ends) Width (mm): 8 Total length (mm): 30 Material: Steel	1	SGD 0.76/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Parallel Keys Straight / Round at One End / Round at Both End SGD 0.33 /Unit Shipping: Same Day

2 Ball Bearing SGD 1.02 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
