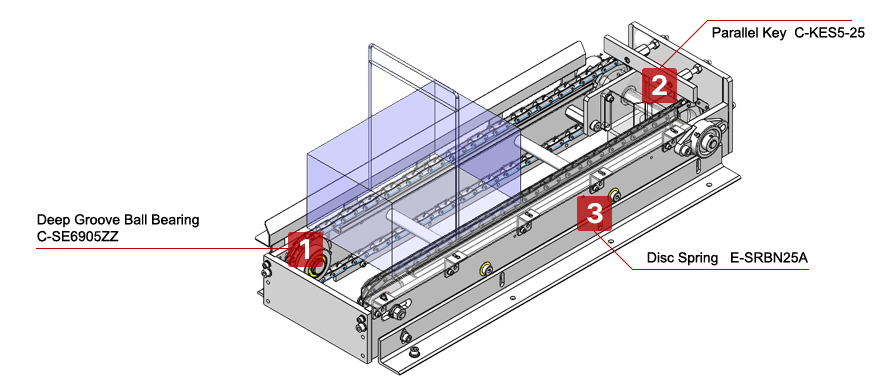

Basket Transfer Chain Conveyor

Specifications and Features

Purpose/Function

Transport/Movement Drive/Actuation

Chain conveyor with motor that doesn't disengage.
Transport of baskets containing workpieces using a chain conveyor.
The tension can be adjusted by drilling a tapped hole in the tension shaft, inserting a screw, and pulling the screw.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Deep Groove Ball Bearing	C-SE6905ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Stainless steel Basic dynamic load rating (N): 3332 Allowable rotational speed (RPM): 8000	4	SGD 4.00/Unit
②	Parallel Key	C-KES5-25	Shape: Parallel key (rounded on both ends) Width (mm): 5 Total length (mm): 25 Material: Steel	3	SGD 0.48/Unit
③	Disc Spring	E-SRBN25A	Material: Steel Outer diameter D(φ): 25 Total deflection amount h(mm): 0.7	4	SGD 27.76/Unit

※ Kindly check MISUMI eCatalog for latest information.
