Film Product Transfer Mechanism

Specifications and Features

Purpose/Function

Transport/Movement Drive/Actuation

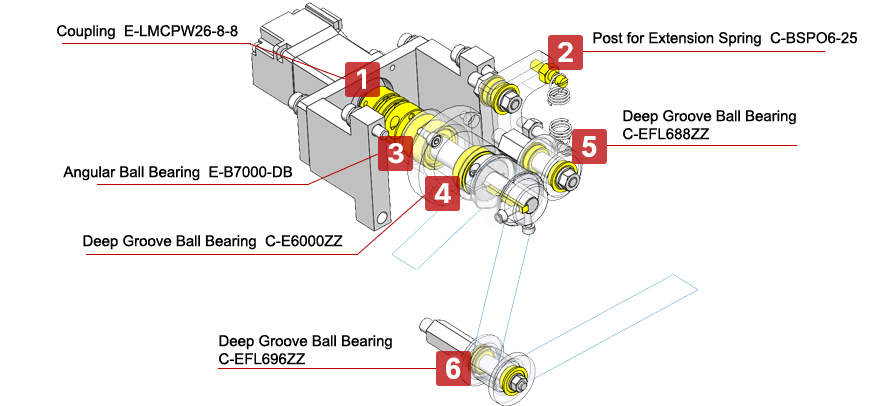

Film transfer roller mechanism.
Transferring film and sheet-type workpieces using rollers.
Transfer rollers are knurled, pressure rollers use urethane rubber to increase friction coefficient, and nip pressure is adjustable by changing springs.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Coupling	E-LMCPW26-8-8	Outer diameter A(φ): 26 Allowable torque(Nm): 2 Allowable eccentricity(mm): 0.15 Maximum rotational speed(r/min): 10000	1	SGD 7.50/Unit
②	Post for Extension Spring	C-BSPO6-25	Post diameter D(φ): 6 Total Length L(mm): 25 Material: Steel Surface treatment: Chromate bright finish	1	SGD 1.34/Unit
③	Angular Ball Bearing	E-B7000-DB	Precision (JIS): Grade 5 Inner/outer ring material: Steel Inner/outer ring Material: Steel Basic dynamic load rating (N): 8100 Allowable rotational speed (RPM): 270000	1	SGD 13.80/Unit
④	Deep Groove Ball Bearing	C-E6000ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 3190 Allowable rotational speed (RPM): 8000	1	SGD 1.02/Unit
⑤	Deep Groove Ball Bearing	C-EFL688ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 1127 Allowable rotational speed (RPM): 25000	4	SGD 1.44/Unit
⑥	Deep Groove Ball Bearing	C-EFL696ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 945 Allowable rotational speed (RPM): 28000	2	SGD 1.64/Unit

※ Kindly check MISUMI eCatalog for latest information.
