Pallet Right-Angle Transfer Mechanism

Specifications and Features

Purpose/Function

Transport/Movement Inspection/Measurement Drive/Actuation

Pallet right-angle transfer without turning the drive motor ON/OFF.
Moves workpieces flowing on a conveyor belt at a right angle to the next process.
When the pallet is raised, forward motion is generated, allowing the pallet to move.
The three rollers waiting under the pallet are below the pallet transfer surface and stationary when waiting.
When the pallet arrives, the cylinder activates the link mechanism and raises the pallet

※ This example is for design reference only. Equipment components may differ from the actual shape.

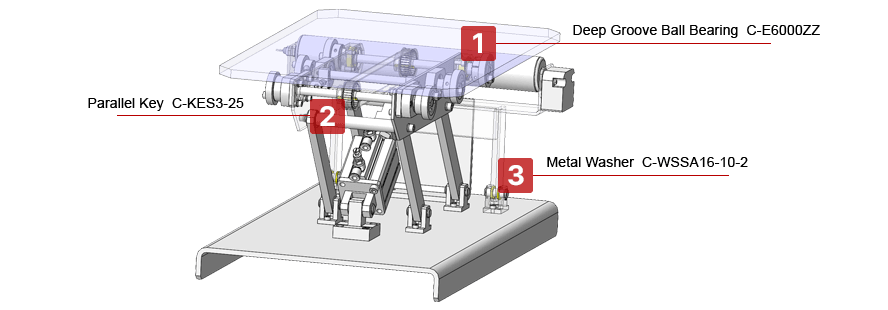

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
