Lift and Carry Mechanism Using Eccentric Shaft

Specifications and Features

Purpose/Function

Transport/Movement Inspection Drive/Actuation

Precise pitch transfer of cylindrical workpieces.
At the final position, the workpiece moves sequentially from one positioning slot to the next for visual inspection and rejection of defective products.
The precision of movement is affected by the machining accuracy of the workpiece support, so the manufacturing precision of the workpiece support is determined by this method.

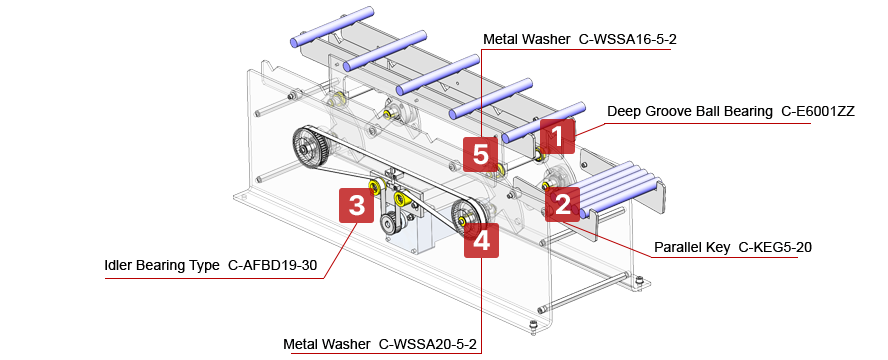

Lift and Carry Mechanism Using Eccentric Shaft

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Deep Groove Ball Bearing	C-E6001ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 3570 Allowable rotational speed (RPM): 8000	4	SGD 1.09/Unit
②	Parallel Key	C-KEG5-20	Shape: Parallel key (one end rounded) Width (mm): 5 Total length (mm): 20 Material: Steel	4	SGD 0.44/Unit
③	Idler Bearing Type	C-AFBD19-30	Usable belt width (mm): 0.5 Material: Aluminum alloy Surface treatment: White anodizing	2	SGD 8.40/Unit
④	Metal Washer	C-WSSA20-5-2	Outer diameter D(mm): 20 Inner diameter V(mm): 5 Material: Steel Surface treatment: Trivalent chromate bright finish	8	SGD 0.55/Unit
⑤	Metal Washer	C-WSSA16-5-2	Outer diameter D(mm): 16 Inner diameter V(mm): 5 Material: Steel Surface treatment: Trivalent chromate bright finish	4	SGD 0.52/Unit

※ Kindly check MISUMI eCatalog for latest information.
