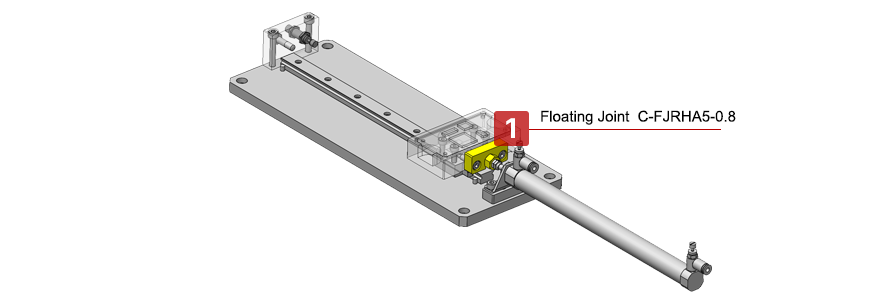

Cylinder Direct-Acting Mechanism

Specifications and Features

Purpose/Function

Transport/Movement Drive/Actuation

Table movement through stroke fine adjustment attachment
Slide the table using cylinder drive.
The forward stroke end is equipped with a shock absorber to avoid shock stops and the stopper is positioned at the center of the load.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Floating Joint	C-FJRHA5-0.8	Connection screw nominal M(mm): M5 Material: Steel Surface treatment: Hard chrome plating	1	SGD 6.28/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Floating Joints Quick Connection Type With Holder SGD 5.96/Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
