Lifting Table

Specifications and Features

Purpose/Function

Transport/Movement Drive/Actuation

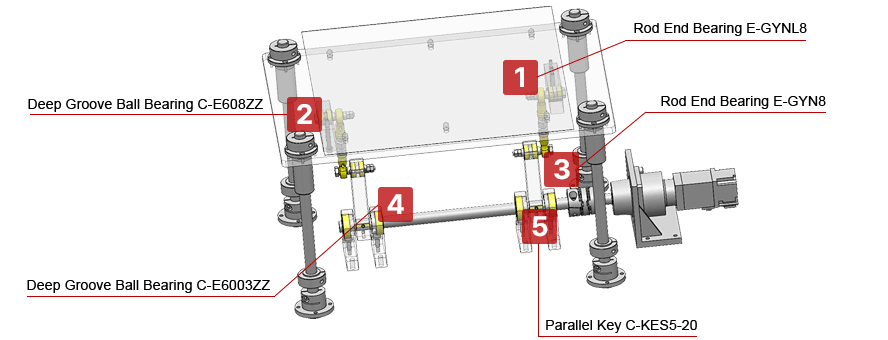

The lift-up motion of the glass substrate, driven by a link mechanism, supplies the next process.
To prevent contamination of the workpiece caused by vibrations from the drive, motors are positioned below the workpiece transfer surface.
Operation: After the lift lowers, the robot arm supplies the workpiece to the next stage.
The lifter then rises, aligns, and delivers the workpiece to the upper device.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Rod end bearing	E-GYNL8	Body material: Steel Connection screw M: M8×1.25 Connection screw direction: Left-hand thread	2	SGD 2.17/Unit
②	Deep Groove Ball Bearing	C-E608ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 2345 Allowable rotational speed (RPM): 24000	8	SGD 0.93/Unit
③	Rod end bearing	E-GYN8	Main body material: Steel Connection screw M: M8×1.25 Connection screw direction: Right-hand thread	2	SGD 2.17/Unit
④	Deep Groove Ball Bearing	C-E6003ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 4760 Allowable rotational speed (RPM): 8000	4	SGD 1.42/Unit
⑤	Parallel Key	C-KES5-20	Shape: Parallel key (rounded on both ends) Width (mm): 5 Total length (mm): 20 Material: Steel	2	SGD 0.44/Unit
