Pallet Packing Device

Specifications and Features

Purpose/Function

Transport/Move

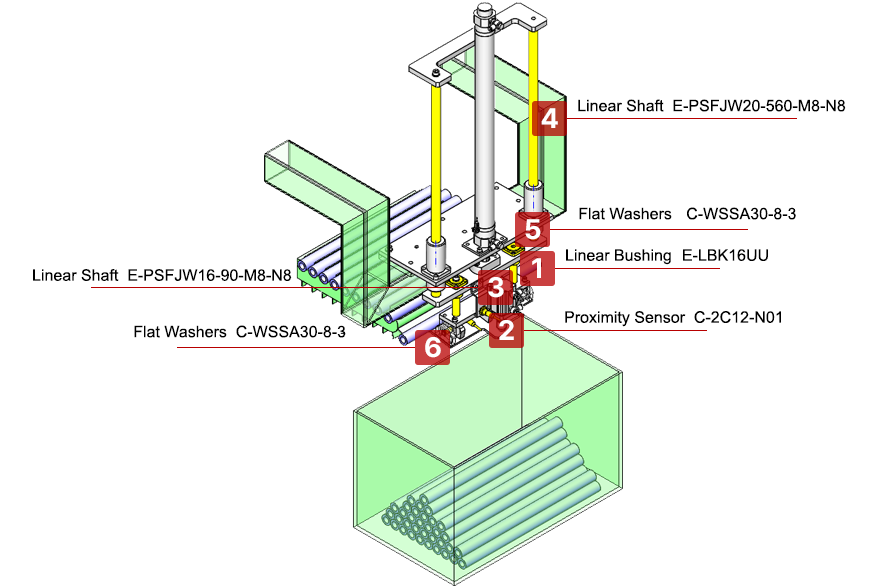

A device designed to securely hold workpieces after removal, preventing damage. As the unit descends, only the weight of the workpiece acts on the work inside the pallet, ensuring the contents can be stored without scratching easily.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Linear Bushing	E-LBK16UU	Inner circle diameter dr(φ): 16 Total length L(mm): 37 Material: Steel Type: Flange type	2	SGD 4.80/Unit
②	Proximity Sensor	C-2C12-N01	Detection distance L1(mm): 4.0mm Head size W(mm): M12X1.0 Output type: NPN(ON) Power and output spec: 3-wire system	1	SGD 15.98/Unit
③	Linear Shaft	E-PSFJW16-90-M8-N8	Shaft diameter D(φ): 12 Length L(mm): 300 Both ends female thread size: M5 Material: Steel Surface treatment: Hard chrome plating	2	SGD 5.10/Unit
④	Linear Shaft	E-PSFJW20-560-M8-N8	Shaft diameter D(φ): 12 Length L(mm): 300 Both ends female thread size: M5 Material: Steel Surface treatment: Hard chrome plating	2	SGD 26.20/Unit
⑤	Metal Washer	C-WSSA30-8-3	Outer diameter D(mm): 8 Inner diameter V(mm): 3 Thickness T(mm): 2 Material: Steel Surface treatment: Trivalent chromate bright finish	2	SGD 0.86/Unit
⑥	Oilless Bushing	E-MXBZ-0810-10	Inner diameter d(φ): 8 Outer diameter D(φ): 10 Total length L(mm): 10 Material: High-performance polymer Sales unit: Pack (50pcs)	4	SGD 148.80/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Square Flanged Linear Bushings, Single / Double / Opposite Counterbored Hole SGD 3.72 /Unit Shipping: Same Day

2 Proximity Sensor, Long Detection Range, Shielded, Bend Tolerance, Oil Resistant Cable SGD 15.98 /Unit Shipping: Same Day

3 Linear Shafts Both Ends Tapped SGD 4.10 /Unit Shipping: 7 Days

4 Flat Washers SGD 0.35 /Unit Shipping: Same Day

5 Resin Oli Free Bushing, High Temperature(PA) SGD 49.90 /Unit Shipping: 5 Days

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
