Chain Transfer Device

Specifications and Features

Purpose/Function

Transport/Movement

A widely used chain-type transport device with a flat frame and chain drive combination.
Widely applied to various types of conveyor transport line equipment
Can be used even in harsh environmental conditions

※ This example is for design reference only. Equipment components may differ from the actual shape.

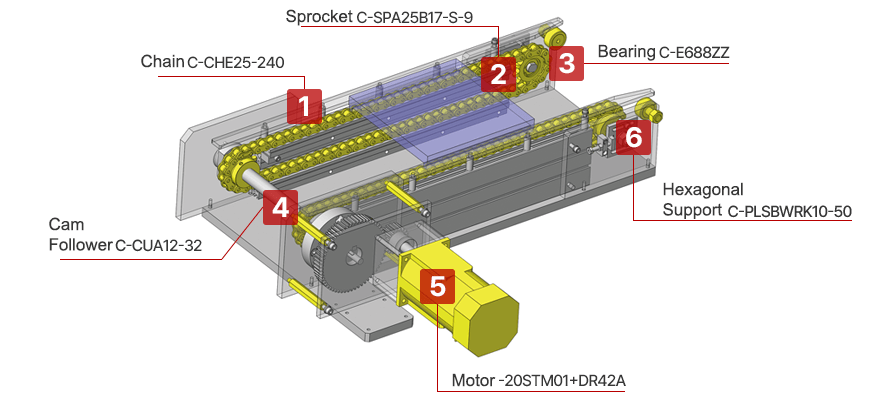

No.	Components	Economy Type Number	Specification	Quantity	Unit Price
①	Chain	C-CHE25-240	Fixed link count type Number of links: 160	2	SGD 5.66/Unit
②	Sprocket	C-SPA25B17-S-9	Number of teeth: 9 Shaft hole diameter 8mm	4	SGD 7.69/Unit
③	Bearing	C-E688ZZ	Inner diameter 8mm Outer diameter 16mm 5mm width	2	SGD 1.11/Unit
④	Camp Follower	C-CUA12-32	External shape: circular My hexagon mount Roller outer diameter D 32mm	2	SGD 10.49/Unit
⑤	Motor	C-20STM01+DR42A	Type Motor+Driver 20 Series Body length 33mm 4 lead wires Holding torque 0.018N·m	1	SGD 80.60/Unit
⑥	Hexagonal Pillar	C-PLSBWRK10-50	Distance between the spokes 10mm Length 50mm	4	SGD 1.32/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Chains Nominal No.25/Joint Link SGD 5.66 /Unit Shipping: Same Day

2 Sprockets Nominal No.25 SGD 4.68 /Unit Shipping: 5 Days

3 Small Ball Bearings SGD 0.93 /Unit Shipping: Same Day

Economy type cam follower hexagonal hole crown type

4 Cam Followers Crown,Hex Socket SGD 6.60 /Unit Shipping: Same Day

5 Stepper Motors 20 Series SGD 38.10 /Unit Shipping: 5 Days

6 Hexagonal Posts End Threaded, One End Tapped SGD 0.68 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
