Linear Electric Mechanism Where Motor Drives Ball Screw

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp

Case study of adopting a linear electric mechanism driven by a stepper motor
Widely applied in industrial automation production fields such as automobile parts manufacturing, packaging, and medical.

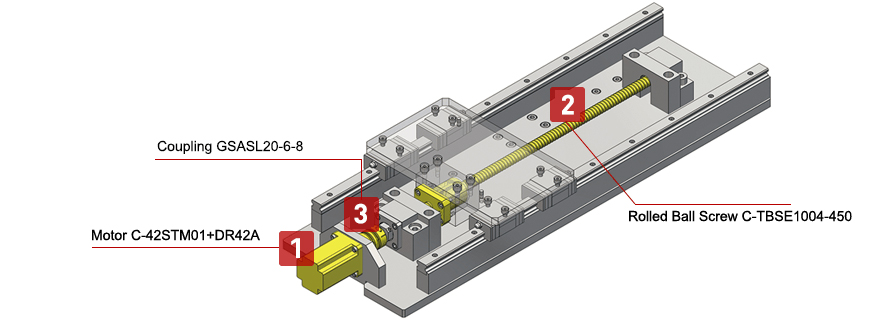

Linear Electric Mechanism Where Motor Drives Ball Screw

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Motor	C-42STM01+DR42A	Type: Motor + Driver 42 series Main body length: 31mm Lead wires: 4 Holding torque: 0.22N·m	1	SGD 50.89/Unit
②	Rolled Ball Screw	C-TBSE1004-450	Shaft diameter: 10 Lead: 4mm Screw shaft total length: 450mm	1	SGD 156.90/Unit
③	Coupling	GSASL20-6-8	Groove type Outer diameter (φ): 20mm Shaft hole diameter 1 (φ): 6mm Shaft hole diameter 2 (φ): 8mm	1	SGD 13.47/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Stepper Motors 42 Series SGD 15.70 /Unit Shipping: Same Day

2 Rolled Ball Screws Shaft Dia.10 Lead 2/4 Accuracy Grade C7 SGD 113.20 /Unit Shipping: 9 Days

3 Slit Couplings Long, Set Screw Type SGD 12.89 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
