Rolled Ball Screws Shaft Dia.10 Lead 2/4 Accuracy Grade C7
Brand :
MISUMI
Caution
Product Description
- Rolled Ball Screws Shaft Dia.10 Lead 2/4 Accuracy Grade C7 from MISUMI.
- The Rolled Ball Screws have a shaft diameter of 10 mm and are available in two different lead sizes: 2mm or 4mm.
- The accuracy grade option for this product is C7.
- The overall length of the shaft screw can be customized to fit a range of configurations, from 150mm to 600mm, in 1mm increments.
- The lead twisting direction for this product is right-handed.
- The screw shaft is made of S55C while the nut is made of SCM420.
Economy Rolled Ball Screws Shaft Dia. 10
Ball Screw Linear Motion Accuracy C7
- High-precision C7 accuracy grade for reliable performance.
- Customizable shaft lengths within a specified range in 1mm increments
- Shaft made from durable S55C material for enhanced longevity.
- Right-handed lead twist for efficient operation.
- Nut made from SCM420 material for high strength and wear resistance.
MISUMI Standard
Cheaper Price
Product Variety
3D CAD Support
Product Overview
Product Features

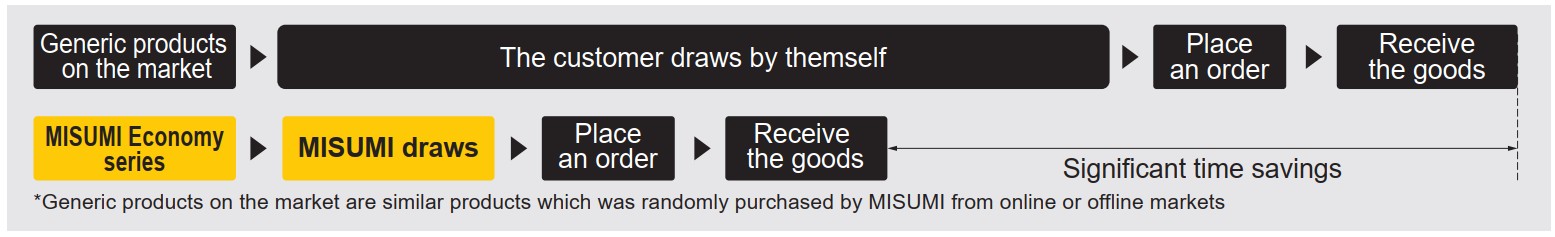

■Short Lead Time
・Eliminate drawing processing and save design time; ships as fast as 6 days after ordering

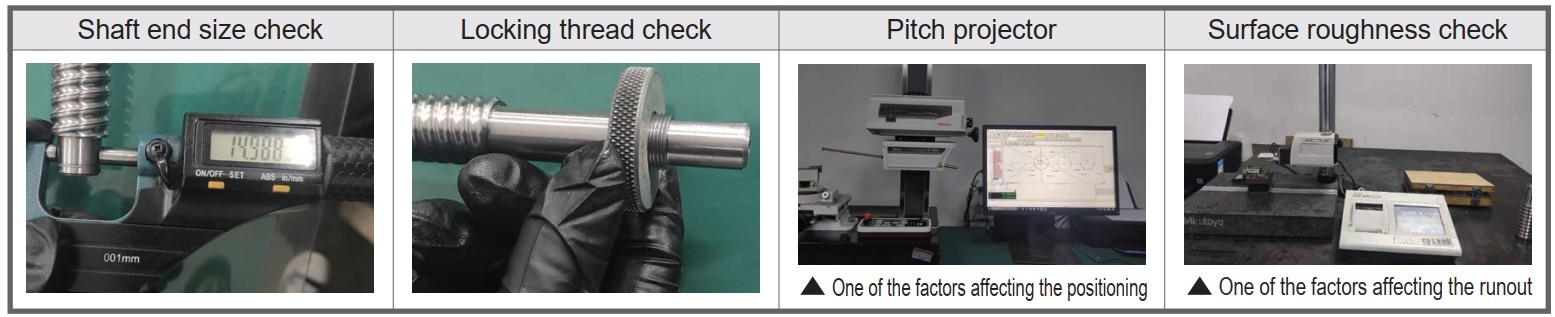

■Quality Assurance
・Even for MISUMI Economy series, pre-shipment quality inspections are conducted just like MISUMI Standard products to provide items that meet catalog specifications
・Eliminate drawing processing and save design time; ships as fast as 6 days after ordering
■Quality Assurance
・Even for MISUMI Economy series, pre-shipment quality inspections are conducted just like MISUMI Standard products to provide items that meet catalog specifications

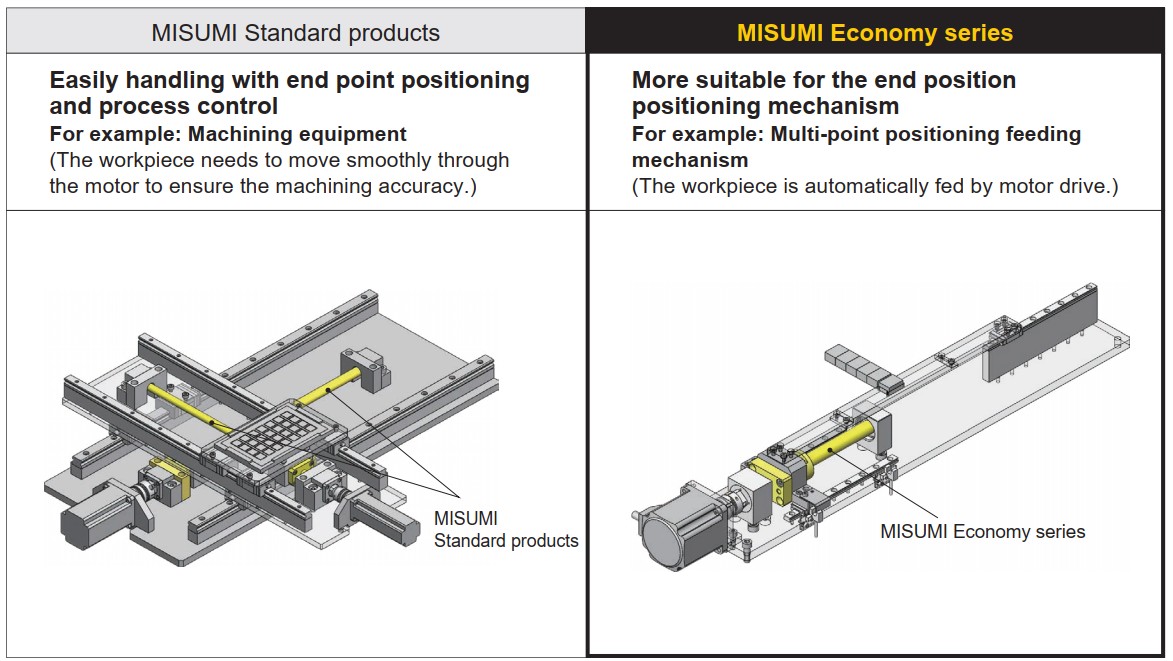

Example of Use
Dimensional Drawing
| Accuracy Grade | Screw Dia. | Lead | Screw Shaft | Nut | ||||
 Material |  Hardness |  Surface Treatment | Material | Hardness | Surface Treatment | |||
| C7 | 10 | 2·4 | S55C Equivalent | Induction Hardening 58～62HRC | － | SCM420 Equivalent | Carburized 58～62HRC | － |
(Unit: mm)
Specification Table
| Part Number |  Total Screw Shaft Length L(1mm increments) | Y | Number of Circuits | Basic Load Rating | Axial Clearance | Twisting Direction | Screw Shaft Support Unit (Sold Separately) | |||||
 Type |  Screw Shaft O.D. |  Lead | C (Dynamic) kN | C (Static) kN | Shape | Fixed Side Model | Support Side Model | |||||
| C－TBSE | 10 | 02 | 150～600 | L-53 | 3 Turns | 1.2 | 2.1 | 0.05 or less | Right | Square Type | C－TEK8 | C－TEF8 |
| Round Type | C－TFK8 | C－TFF6 | ||||||||||
| Short Type | E－TLK8S | E－TLF8 | ||||||||||
| 04 | 1.6 | 3.4 | Square Type | C－TEK8 | C－TEF8 | |||||||
| Round Type | C－TFK8 | C－TFF6 | ||||||||||
| Short Type | E－TLK8S | E－TLF8 | ||||||||||
| *The Y dimension must be greater than the total length of the nut | kgf=N×0.101972 | |||||||||||
| Lead Accuracy | Maximum Tolerance for Screw Shaft Runout (See table below for details) | ||
| Unit: mm | |||
| MISUMI Economy series | C7 | 0.350 | |
| MISUMI Standard product | 0.150 | ||
Screw Shaft Runout Tolerance
| Screw Shaft Length | |||||
| ～200 | 201～315 | 316～400 | 401～500 | 501～630 | |
| MISUMI Economy series | 0.120 | 0.160 | 0.210 | 0.270 | 0.350 |
| MISUMI Standard | 0.065 | 0.080 | 0.100 | 0.120 | 0.150 |
Related Products
| Economy Series Support Units - Standard Square Type | Economy Series Support Units - Round Type | ||
| Fixed Side Model | Supported Side Model | Fixed Side Model | Supported Side Model |
 |  |  |  |
Precautions
■Precautions for Selection and Use
●Rotating the nut by hand may not feel smooth, but does not affect the positioning accuracy, so this product is suitable for multi-point positioning feeding mechanism. Please feel free to use.
●If low runout is required during operation (e.g., machining equipment), please use MISUMI Standard products.
●During operation, if excessive noise or sharp, piercing sounds occur, please be sure to confirm the installation accuracy of the screw and whether the specifications of peripheral components such as motors and couplings are appropriate. MISUMI does not guarantee the noise level after the screw is assembled.
●Although lithium soap-based grease is applied at the factory, new grease should be injected every 2 to 3 months after receipt as a standard, otherwise performance will be affected.
●Do not allow the nut to exceed the ball screw nut travel range or screw it off the screw shaft, as this will cause balls to fall out and damage ball circulation parts.
●Please note that placing the ball screw and nut at an incline may cause them to fall due to their own weight.
●This product is a machined type, so there will be knife patterns and color difference in its appearance. Small scratches or color changes without affecting the use and main function are of a normal phenomenon. Please feel free to use.
■Precautions for Design and Assembly of Ball Screws and Peripheral Parts
A ball screw is a component that only bears axial loads. If it is subjected to radial loads or moment loads, it may lead to poor sliding, vibration, and abnormal noise, thereby shortening the service life.
The causes of radial and moment loads on ball screws are axial deviation and parallelism errors of surrounding components. Therefore, to prevent errors, peripheral parts of the ball screw must be correctly designed and assembled.
●Axial misalignment between the ball screw and the support unit assembly (Fig. 1)
-Axial deviation refers to the deviation between the axis of the ball screw fixed by the fixed-side support unit and the axis of the bearing in the supported-side support unit.
-Allowable axial deviation value: 20μ or less (reference value)
●Parallelism between the ball screw and the linear guide (Fig. 2)
-Parallelism error refers to the vertical or horizontal tilt of the ball screw relative to a reference such as a linear guide.
-Allowable tilt value: 1/2000 or less (Fig. 3)
●Precautions during Assembly
If abnormal noise is detected during ball screw operation or if sticking occurs during movement after assembly, please loosen the connections of each component to adjust, and reassemble after smooth movement is achieved.
-Error in the horizontal direction of the support unit (Fig. 1)
-Parallelism error between the linear guide and the ball screw (Fig. 2)
-Fixing of the worktable and the nut bracket
-Fixing of the ball screw nut and the nut bracket
