MISUMI's Free Click-and-Drag Software Solution for
your Aluminum Extrusion Design Needs.


Design Faster, Get Instant BOM & Drawings in Minutes!



Try FRAMES Now!

  • Reduces design and order time by up to 90%.
  • Readily downloadable CAD Data.
  • Save Cost when you Buy MISUMI Economy Series.

About MISUMI's FRAMES Software

Simplify Aluminum Extrusion Ordering with FRAMES: Intuitive Click-and-Drag Technology for Faster Results

FRAMES significantly reduces design time
Get Started Now: Instant Access, Free of Charge!
Create drawings
Instant BOMs and Drawings
Free and available to use immediately
Design Faster, Deliver Sooner: Hours of Work Now Done in Minutes

How to Get Started

1.

Fill in Form

Click on the button below.

2.

Check Email for Download Link

A link to download will be sent to the email address you provided.

3.

Download & Install

Click on link in the email to download & install according to user manual.

4.

Login using MISUMI Login ID & Password.

Start designing!

Fill out Form to Download Software Software & Installation Guide

How does MISUMI FRAMES Work?

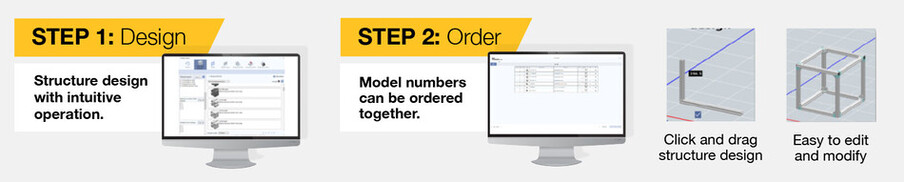

Step one design, step two order

BOM is created automatically which can be exported to Excel and used to place orders.

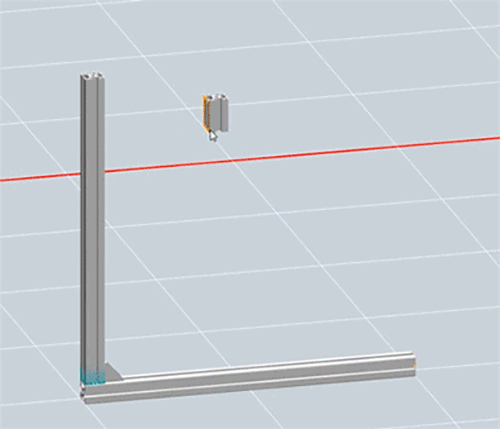

Pick a product and with one click automatic setup

All detailed work is performed by FRAMES.

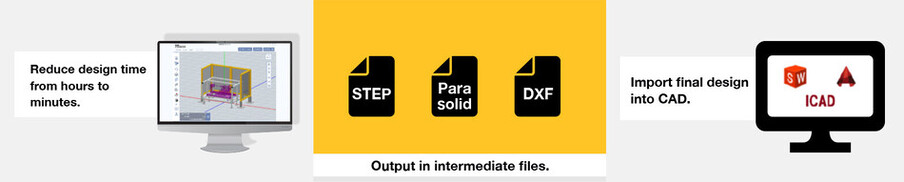

Diagram shows how output can be in intermediate files and then import final design into CAD

All models and drawings designed in FRAMES can be imported to other CAD software.

MISUMI FRAMES Design Examples

Design Examples

Example of a transfer cart
Transfer Cart
Example of a two tier table
Two Tier Table
Example of a workbench
Workbench
Fill out Form to Download Software

Frequently Asked Questions

Can it be used on any PC?

Recommended specs:

OS: Windows 10 64-bit | Windows 11 64-bit
CPU/memory: Core i5 (2.7GHz, 4 cores) or higher / 8GB or higher
Required HDD free space: 5GB
Graphic board: NVIDIA recommended

Is it possible to use it on the Web?

MISUMI FRAMES is an installation type application. Not available on the web.

The download is free, but are there any registration or usage fees?

There are no registration or usage fees.

What products does MISUMI FRAMES have?

Aluminum frame and various accessories such as Nut, Bracket, Slot Cover, Frame Cap, Panel, Caster, Adjuster Pad, etc.

If I have further questions or encounter any problems using MISUMI FRAMES, who can I contact?

You can contact the support line at techsupport@misumi.com.sg
