BLDC Standard- Parallel Gearhead & Right Angle

Brand :

MISUMI

Caution

Product Description

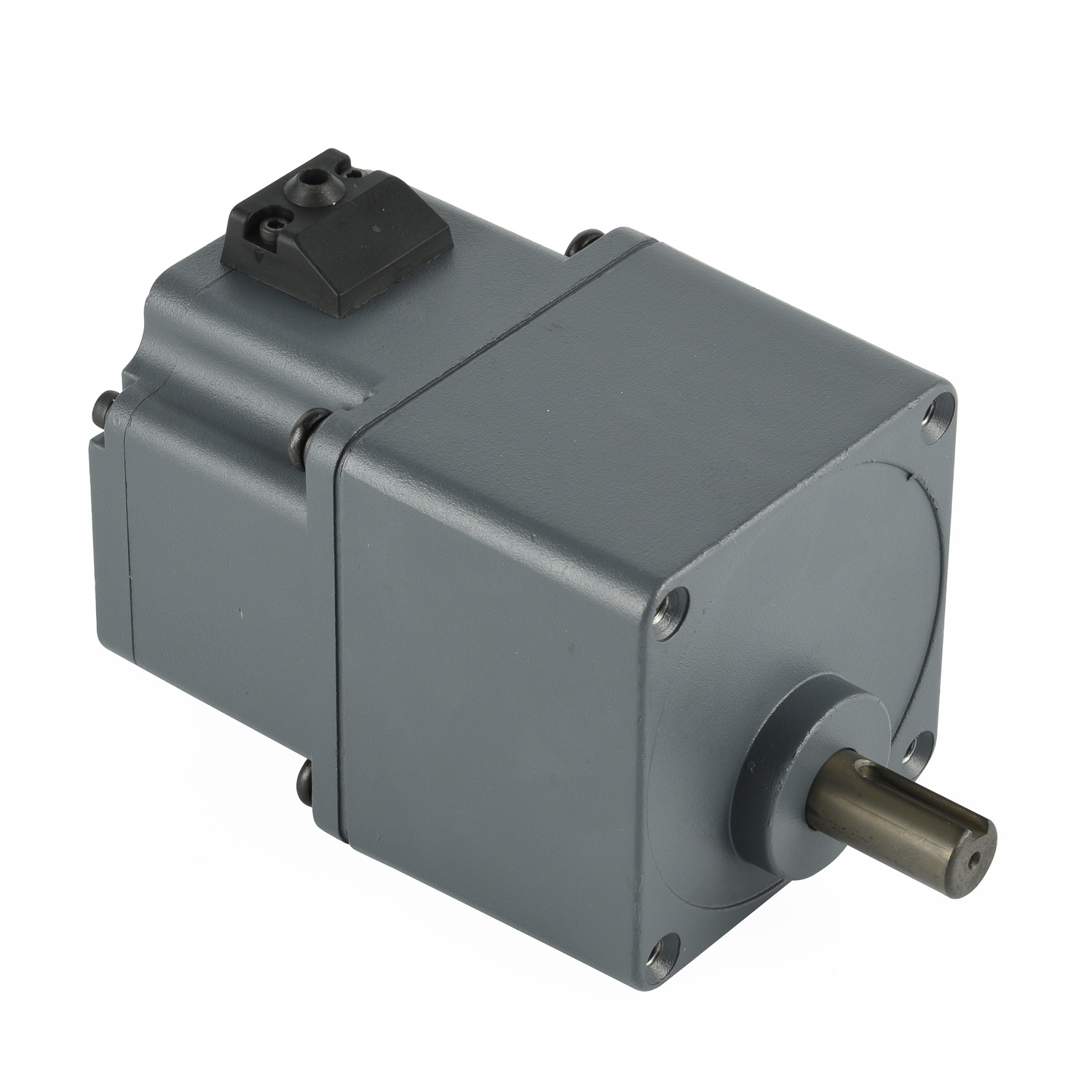

BLDC Standard - Parallel Gearhead & Right Angle launched as MISUMI Economy series

Product Overview

- BLDC Standard series have 25 30-750W launched as MISUMI Economy series
【Usage】
- BLDC do not use mechanical parts like brushes and commutators, Instead, they operate using Hall sensor signals and transistor switching, making them maintenance-free.
【Product Features】
- BLDC motors are maintenance-free because they use Hall sensor signals and transistor switching instead of brushes.
- Provide highly stable speed control (±1%), automatically adjusting to load changes while maintaining accuracy. They also offer a wide speed range, operating effectively from low to high speeds (80~3000 rpm)
- Save energy by using a permanent magnet rotor, reducing losses and lowering power consumption by about 23%.
- Deliver high torque at low speeds, ensuring smooth and stable operation.
- Have a compact design with high power output thanks to permanent magnets, offering better space efficiency and higher performance than 3-phase induction motors.
- Include built-in protection features such as overcurrent, undervoltage, and open-phase protection to ensure safe operation. Protect level IP 40 & IP 54

Motor Type	Gearhead Type	Type	Applications	Features	Output Range	Controller
BLDC - High Torque Motor	Parallel & Solid Gearhead	EA-BLD⃞-220-GK	Where space is available and high power (torque) is required.	High allowable torque and superior load capacity (e.g., 10N.m)	15W-400W	LINK	Series C41
	Parallel (L Type) & Hollow Gearhead	EA-BLD⃞-220-GKL	Where there is plenty of space, standard power, and the output shaft is constantly rotating in reverse.	Standard type with slightly lower allowable torque than K2 (e.g., 5N.m).	15W-400W
	Right Angle & Hollow Gearhead	EA-BLD⃞-220-GKR	To save installation space or want to mount directly on the axis of the device (hollow shaft).	Space-saving design; available in Hollow Shaft or Solid Shaft types.	40W-400W
BLDC - High Efficiency Motor	Parallel & Solid Gearhead	EA-BLD⃞-220-GV	General-purpose use requiring wide speed options	Parallel shaft reducer. Widest range: 5 to 360	30W-750W		Series C20 Series C40
	Parallel (L Type) & Hollow Gearhead	EA-BLD⃞-220-GS	Machinery with tight space constraints; allows perpendicular mounting.	Right-angle gearbox with hollow shaft structure. Special design with a right-angle hollow shaft helps optimize space	30W - 400W
	Right Angle & Hollow Gearhead	EA-BLD⃞-220-GSL	Heavy-duty applications demanding high power in a parallel configuration.	Parallel shaft reducer. IP20 (Standard rating, lower than S/SF).	100W-1100W
BLDC - Standard Motor	Without Gearhead	EA-BLD⃞-A	Used when speed reduction is not required (No gear head)	Only the motor body. The output shaft is either a smooth round shaft or a keyed shaft	15W-400W		Series C10 Series C20
	Parallel Gearhead	EA-BLD⃞-GN/GU	It is the most common type, used in conveyors and automation systems that require direct transmission and basic load capacity.	The motor comes with a pre-mounted square gearbox, with the output shaft parallel to the motor shaft. The GU series is typically more robust and uses bearings.	15W-1000W
	Parallel (L Type) Gearhead	EA-BLD⃞-GNL/GUL	Useful in confined spaces where a 90° transmission angle is needed to save space. The hollow shaft allows easy direct mounting onto the machine shaft.	The gearbox is designed in an L-shape, with the output shaft at a 90° angle to the motor body. It often features a hollow shaft (designation LC)	15W-750W
