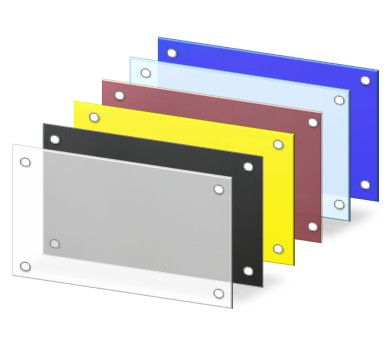

Acrylic (PMMA) Cover Panel Pre Drilled Type_SGP
Brand :
MISUMI
Caution
Product Description
_001.jpg)
Product Overview of Panel Mounts
Panel Mounts acrylic sheet, chemical name "PMMA" belongs to polyacrylate, commonly known as “specially treated organic glass".
Product Feature of Panel Mounts
Product Feature of Panel Mounts
Panel Mounts acrylic sheet, also known as specially treated organic glass, is a replacement product of organic glass.
Good weather resistance and acid and alkali resistance, pure color, beautiful and smooth, long service life.
High recovery rate, easy maintenance, easy to clean, can be scrubbed with a soft cloth.
Good weather resistance and acid and alkali resistance, pure color, beautiful and smooth, long service life.
High recovery rate, easy maintenance, easy to clean, can be scrubbed with a soft cloth.
Dimensional Drawing of Panel Mounts
_001.jpg)
| Through Hole Dia. [d] | 3.5 | 4.5 | 5.5 | 6.5 | 9 | 11 |
| Bolt Nominal Dia. | 3 | 4 | 5 | 6 | 8 | 10 |
Specifications Overview of Panel Mounts
Specification Table
Please order after selecting part number and parameters according to the selection steps
to
.
to
.Part NumberType・ Color Code・ Number of Holes | － |  T | － |  A | － |  B | － |  F | － |  G | － | D Hole Diameter |
| LCPMST4H | － | 5 | － | 150 | － | 100 | － | 120 | － | 80 | － | D3.5 |
| Part Number |  TThickness Selection | Dimension 1mm increments | Hole Diameter | Material | ||||||
 TYPE |  Color Code | Color Description |  Number of Holes |  A |  B |  F |  G | D | ||
| (A≥B) | ||||||||||
| LCPMS | T | Transparent | 2H | 2 3 4 5 6 8 10 12 15 18 20 25 | 20～1200 | 20～800 | 6～1190 | 5～795 | 3.5 4.5 5.5 6.5 9 11 | Acrylicacrylic |
| A | Transparent (Matt) | 2 3 5 | ||||||||
| B | White (Milky Translucent) | 2 3 4 5 6 8 10 | ||||||||
| C | White (Opaque) | 2 3 4 5 6 8 10 | ||||||||
| D | Black (Opaque) | 4H | 2 3 4 5 6 8 10 | 6～790 | ||||||
| E | Black (Translucent) | 3 5 6 10 | ||||||||
| F | Red | 3 | ||||||||
| G | Yellow | 3 | ||||||||
| H | Orange | 6H | 3 | 6～595 | ||||||
| J | Blue (Translucent) | 3 | ||||||||
| K | Blue (Glass) | 3 5 | ||||||||
| L | Green (Glass) | 3 5 | ||||||||
| M | Grey (Translucent) | 8H | 3 | 6～395 | ||||||
| N | Ivory | 3 | ||||||||
| P | Brown | 3 | ||||||||
| Q | Bronze (Translucent) | 3 5 | ||||||||
Color Image (reference)
| Symbol | Color | Image | Symbol | Color | Image | Symbol | Color | Image |
| T | Transparent |  | F | Red |  | M | Grey (Translucent) |  |
| A | Transparent (Matt) |  | G | Yellow |  | N | Ivory |  |
| B | White (Opaque) |  | H | Orange |  | P | Brown |  |
| C | White (Milky Translucent) |  | J | Blue (Translucent) |  | Q | Bronze (Translucent)) |  |
| D | Black (Opaque) |  | K | Blue (Glass) |  | |||
| E | Black (Translucent) |  | L | Green (Glass) |  |
Example of Use of Panel Mounts
■ Panel Mounts used for hood and folding doors, etc.
