Idlers, Backside Belt Tensioning

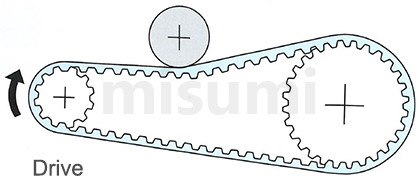

Feature 1: MISUMI tension idler for the back of timing belts, suitable for all types of toothed belts.
Feature 2: MISUMI synchronous belt tensioning idler on the back does not contact the toothed surface, greatly reducing wear on the toothed surface.
Feature 3: MISUMI timing belt tensioning idler does not contact the toothed surface and allows flexible adjustment of the tensioning position.
Feature 4: MISUMI timing belt tensioning idler can be installed on the slack side near the pulley to increase the belt wrap angle.
Feature 5: MISUMI timing belt idlers comply with industry standards, ensuring stable procurement and easy equipment maintenance.
Feature 6: MISUMI timing belt idlers are available in a variety of materials to suit different designs and usage environments.

(1) If rust prevention is required, please give priority to products made of aluminum alloy, austenitic stainless steel, or with electroless nickel plating surface treatment.
Please click Rust Prevention and Maintenance of Metal Materials and Their Surface Treatments
(2) Do not use an idler pulley for tensioning on the back side of polyurethane timing belts.

Timing Belts, Timing Pulleys, Idler Technical Information
(1) Information on selecting timing pulleys and timing belts, tension, etc. (Transmission).
(2) Selection data for timing pulleys and timing belts, tension data, etc. (Transmission and conveying).
(3) Main causes and countermeasures for synchronous timing belt damage, breakage, abnormal noise, etc.
(4) Reference materials on timing belt replacement intervals.
(5) Timing pulley and idler dimension tolerance information.
