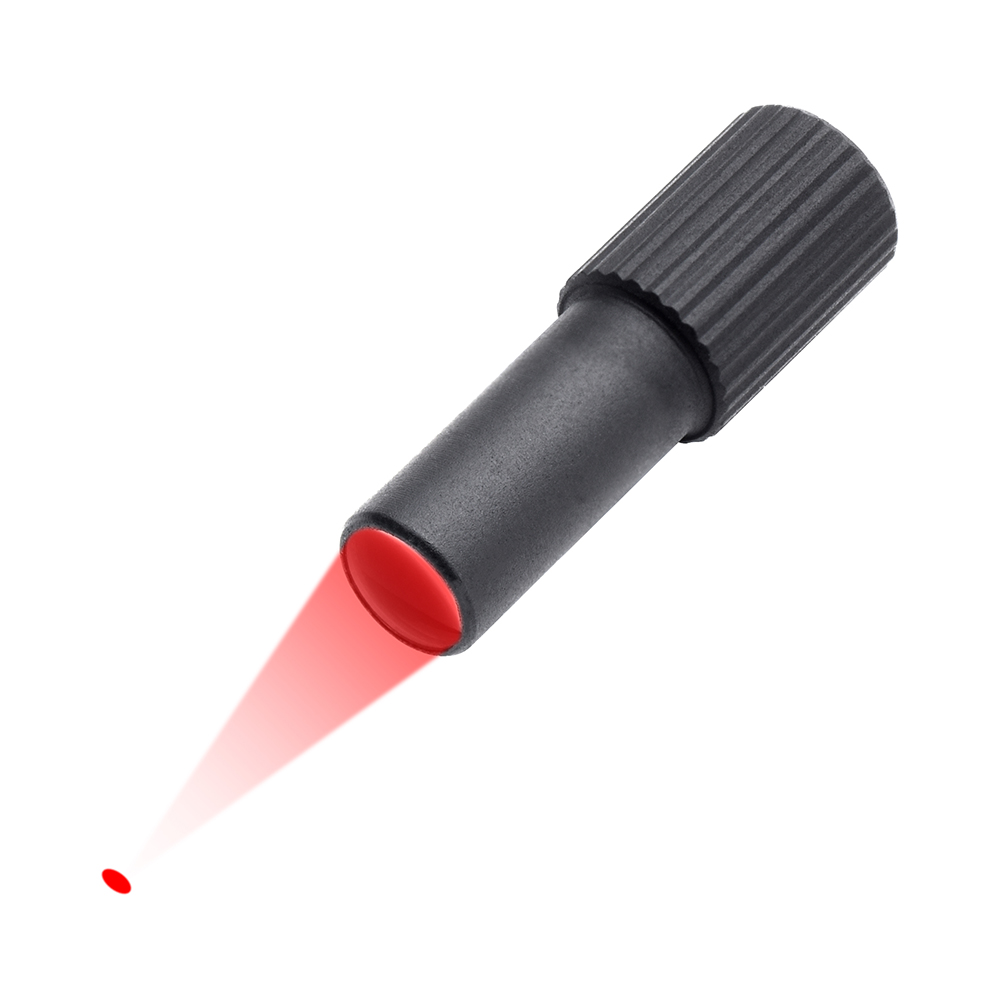

Lens for Fiber Optic Unit
Brand :
MISUMI
Caution
Product Description
This is an economy item, The price is cheaper than the MISUMI standard product.
Dimensional Drawing
Specification Overview
| Part number | Specifications | Shape (mm) | Applicable Fiber Optic Cable Model | Operating Temperature | Tip Outer Diameter | Spot Diameter | Focal Length | Suitable for Fiber Optic Head Diameter |  Material | |
| Housing | Lens | |||||||||
| E-MSMF3A | Retroreflective Type |  | E-MSMC31M E-MSMC31N   | -40 to 70°C | ⌀4.3 | Approx. ⌀0.4 | 7 mm±2 | M3 × P0.5 | Aluminum | Glass |
| E-MSMF3B |  | -40 to 70°C | ⌀7.4 | Approx. ⌀0.5 | 15 mm±2 | Aluminum | Glass | |||
Product Features
Small light spot, suitable for detecting tiny objects.
