8-50 Series Aluminum Frame - Square 50x50mm, 4 Side Slots, A6N01SS-T5 Aluminum

Brand :

MISUMI

Caution

Additional freight and delivery charge are added to items longer than 2000.1mm

Product Description

Aluminum Frame 8-50 Series/ Slot width 10/50x50mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 10 mm. /1 slot
● Cross-section : 50 mm. X 50 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear Anodize and Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.

Dimensional Drawing of Aluminum Frames

EFS (standard type)		HFS (standard type)		GFS (high rigidity type)

8-45 Series

*There is no tolerance for the L dimension of the fixed length Aluminum Frames.
For other dimensional tolerances,

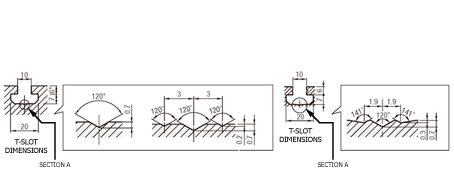

Groove details (HFS/GFS)

Groove details (EFS)

Groove bottom details

(HFS
type)

(GFS
type)

(EFS
type)

Enlarged view of part A

■The 8-45 series has
a groove width of 10±0.36 mm and is suitable for M8 bolts.
[ ! ]No surface treatment is applied to cut surfaces or additionally machined areas.
[ ! ]If an end tap is specified, it will be machined in the area circled in red.

Specified Length Aluminum Frames Specifications Table (Additional Processing: Possible)

Model	−	L
HFS8-5050	−	800

type	Material	Surface Treatment	Model	L specified in 0.5mm increments (tolerance ±0.5mm)	Mass kg/m	Cross-sectional area mm ²	Moment of inertia mm ⁴
type	Material	Surface Treatment	Model	L specified in 0.5mm increments (tolerance ±0.5mm)	Mass kg/m	Cross-sectional area mm ²	ℓx	ℓy
HFS	A6005CSS-T5	White anodized aluminum	HFS8-5050	5 0 to 4 0 0 0	3.43	1150	26.64× ¹⁰⁴	26.64× ¹⁰⁴
HFS	A6005CSS-T5	Black anodized aluminum	HFSB8-5050	5 0 to 4 0 0 0	3.43	1150	26.64× ¹⁰⁴	26.64× ¹⁰⁴
EFS	A6005CSS-T5	White anodized aluminum	EFS8-5050	5 0 to 4 0 0 0	2.84	1053	26.98× ¹⁰⁴	26.98× ¹⁰⁴
EFS	A6005CSS-T5	Black anodized aluminum	E F S B 8 －5 0 5 0	5 0 to 4 0 0 0	2.84	1053	26.98× ¹⁰⁴	26.98× ¹⁰⁴
GFS	A6061SS-T6 equivalent	White anodized aluminum	GFS8-5050	5 0 to 4 0 0 0	4.4	1633	38.16× ¹⁰⁴	38.16× ¹⁰⁴

[ ! ]If you require a length of 4000 mm or more without anodizing

Fixed Length Aluminum Frames Specifications Table (Effective Length 4000mm)

[ ! ]Fixed-length Aluminum Frames have a format with K at the beginning of the format code for each Aluminum Frames.

Model	−	L
KHFS8-5050	−	4000

type	Material	Surface Treatment	Model	Lmm (no tolerance specified)*2	Cross-sectional area mm ²	Moment of inertia mm ⁴
type	Material	Surface Treatment	Model	Lmm (no tolerance specified)*2	Cross-sectional area mm ²	ℓx	ℓy
HFS	A6005CSS-T5	White anodized aluminum	K H F S 8 －5 0 5 0	4 0 0 0	1150	26.64× ¹⁰⁴	26.64× ¹⁰⁴
HFS	A6005CSS-T5	Black anodized aluminum	K H F S B 8 －5 0 5 0	4 0 0 0	1150	26.64× ¹⁰⁴	26.64× ¹⁰⁴
EFS	A6005CSS-T5	White anodized aluminum	K E F S 8 －5 0 5 0	4 0 0 0	1053	26.98× ¹⁰⁴	26.98× ¹⁰⁴
EFS	A6005CSS-T5	Black anodized aluminum	K E F S B 8 －5 0 5 0	4 0 0 0	1053	26.98× ¹⁰⁴	26.98× ¹⁰⁴
GFS	A6061SS-T6 equivalent	White anodized aluminum	K G F S 8 －5 0 5 0	4 0 0 0	1633	38.16× ¹⁰⁴	38.16× ¹⁰⁴

[ ! ] An effective length of 4000 mm means that the Aluminum Frames has an effectivelength of 4000 mm or more that can actually be used.
The actual size, including the gripping allowance, is 4000 mm or more (it will be several tens of mm longer).
The fixed-length Aluminum Frames is a Aluminum Frames that the customer cuts to their own use, so the exact lengthcannot be specified.
[ ! ]A heat resistance temperature of up to 70°C is recommended. Continuing temperatures above 100°C will cause bendingdue to the load.
However, temporary high temperatures such as steam can tolerate up to 100°C.

Alterations of Aluminum Frames (Specified Length Only, Fixed Length Not Possible)

[ ! ]By using the various alterations listed below, MISUMI's specified length Aluminum Frames can be assembled with greaterflexibility.
Some Aluminum Frames cannot be applied depending on the type and size. Please check the price list on eachalteration page to see if it is applicable.
Items marked with "-" in the price list cannot be applied.

classification	Additional Work name	Alteration code example	Content
> End face tapping	End face tap (center hole)	LTP/RTP/TPW LHP/RHP/HPW	The Aluminum Frames is tapped. 　 ■HFS/EFS type 　 LTP/RTP/TPW: M12 depth 18 mm (helisert inserted) 　LHP/RHP/HPW: M10 depth 18 mm (helisert inserted) 　 ■GFS type 　 LTP/RTP/TPW: M12 depth 36 mm 　LHP/RHP/HPW: M8 depth 15 mm (helisert inserted) Blind joints (screw joints simple joints) hat require this processing
> Change cutting method	High-precision cutting	SC	The tolerance of the overall length L has been changed from L±0.5 to L±0.2, allowing for high-precision cutting. *Only applicable to L≦1500
> Change cutting method	45 degree cut	L□T45 R□T45	The cut is made at a 45-degree angle. 45-degree cuts cannot be specified in the same direction with otheralterations. Example: HFS6-3030-500- L TP- LAT45 ⇒ ✖ (alterations in the same direction (left)) HFS6-3030-500-LTP- R AT45 ⇒ 〇 (separate alterations on left and right) [ ! ]If you would like to cut at an angle other than 45 degrees
> Wrench Drilling	Fixed position wrench hole	LCH/LCV/LCP RCH/RCV/RCP	This additional processing is required to drill a wrench hole (φ8) in accordance with the position of the tap onthe end face of the mating Aluminum Frames when fastening a blind joint that assembles Aluminum Frames into an Lshape. Blind joints that require this processing ( screw joints / single joints / tapping joints)
	Hole position shifted by the thickness of the Aluminum Frames cap	FL FR	The hole position for the additional fixed position wrench hole is moved by the thickness of the Aluminum Framescap (3 mm). This prevents the Aluminum Frames cap from protruding when assembled at a corner.
	Wrench holes at specified positions	AH/BH/CH/DH/EH AV/BV/CV/DV/EV AP/BP/CP/DP/EP	This is an additional process to drill a wrench hole (φ8) at any position. It can be used when fastening blindjoints at locations other than the Aluminum Frames end. ・ Up to five holes can be drilled in each of thehorizontal, vertical, and cross directions. [!] If you require six or morewrench holes.
> Counterbore Drilling	Specified position counterbored hole	Z8-XA○○ Z12-YA○○	This is an additional process to drill a counterbore hole (select from Z6, Z8, or Z12) at any position. 　Z6: Through hole φ6.5, counterbore φ11, Z8: Through hole φ9, counterbore φ14, Z12: Through hole φ13,counterbore φ19 . Up to five holes can be drilled in one direction. For Aluminum Frames with multiplerows of grooves on one surface, counterbore holes will be machined in all grooves. [ ! ]If you require more than six counterbore holes or to change the direction of the counterbore holes.
> Drilling holes specifically for blind joints	D hole	LDH/LDV RDH/RDV	Drill the holes required for fastening a single joint. ( Single joint)
	S hole	LSH/LSV RSH/RSV	Drills holes required for fastening first-in-place double joints ( first-in-place double joints).
	M hole	LMH/LMV RMH/RMV	Drills holes required for connecting post-assembly double joints and center joints. ( Post-assembly double joints / center joints)
> Other processing	GFS series end face tap	LTS/RTS/TSW	We perform the tapping required to attach end plates specifically for high-rigidity Aluminum Frames. ( High-rigidity plates )
	C-chamfered end	CW	The outer periphery of the Aluminum Frames end face is chamfered.
	Sticking stickers	ZZZ	A sticker printed with the catalog number etc. is attached to the Aluminum Frames. There are restrictions on the number of characters etc., but it is also possible to print the customer'sserial number and unit number.

8-45 Series Related Parts of Aluminum Frames

■Aluminum Frames accessories

Product name	bracket	Blind Joint	nut	Aluminum Frames cap	Groove cover	Conductive washer
photograph
Product page	Here	Here	Here	Here	Here	Here

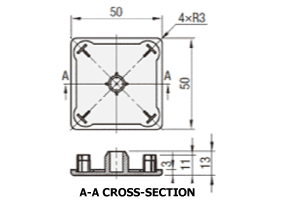

■List of compatible Aluminum Frames caps

Aluminum Frames model number	Compatible Aluminum Frames caps
Aluminum Frames model number	Product Type		color	Thickness	Model number	Number of uses
HFS8-5050 HFSB8-5050 EFS8-5050 EFSB8-5050 fixed length Aluminum Frames (model numbers starting with K) are also the same.		Cap stopper	black	3	HFC8-5050-B	1
		Cap stopper	Light gray	3	HFC8-5050-S	1
		bolted	black	3	HFCB8-5050-B	1
			Light gray	3	HFCB8-5050-S	1
			yellow	3	HFCB8-5050-Y	1
The same applies to the GFS8-5050 fixed length Aluminum Frames (model number starting with K).		Cap stopper	black	3	GFC8-5050-B	1
		Cap stopper	Light gray	3	GFC8-5050-S	1

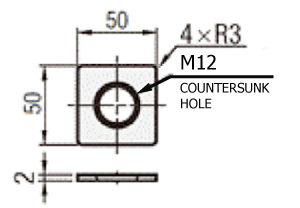

		Bolt mounting (high rigidity plate type) requires special additional processing.	silver color	2	HFCD8-5050	1

Selection Support Information of Aluminum Frames

■Aluminum Frames connection methods
Aluminum Frames connection methods can be broadly divided into the following two types. >> various connectionexamples .

	bracket	Blind Joint
Connection example
Features	- Connects outside the Aluminum Frames - Can be moved to any position - Not aesthetically pleasing	・Connects inside the Aluminum Frames ・Aesthetically pleasing ・Requires processing of the AluminumFrames

■Additional tapping of end faces (8-45 series □50)
Center section (no corner section)

type	Size and Position	left	Right side	both sides	cross section
NEFS EFS HFS	M12 depth 18 (φ12.5 is helical insert)	LTP	RTP	TPW
NEFS EFS HFS	M10 depth 18 (helisert inserted)	LHP	RHP	HPW
GFS GNFS	M12 depth 36	LTP	RTP	TPW
GFS GNFS	M8 depth 15 (helisert inserted)	LHP	RHP	HPW
Tap position

■How to think about the allowable guideline load (deflection) for Aluminum Frames
[!] The allowable guideline load is the load that causes the Aluminum Frames todeflect within 1 mm per 1000 mm of length.
Deflection exceeding this will not cause damage, but it should be considered the maximum practical deflection. (Theallowable guideline deflection is proportional to the length. For example, 500 mm = 0.5 mm, 2000 mm = 2 mm.)
the simplified deflection calculation table/deflection calculation formula for your reference.
Aluminum Frames
