High Torque Timing Pulleys - 5GT Type
Brand :
MISUMI
Caution
- Please note that the swaged flange options, NFC, RFC, and LFC, are not reflected in the CAD data.
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Product Description

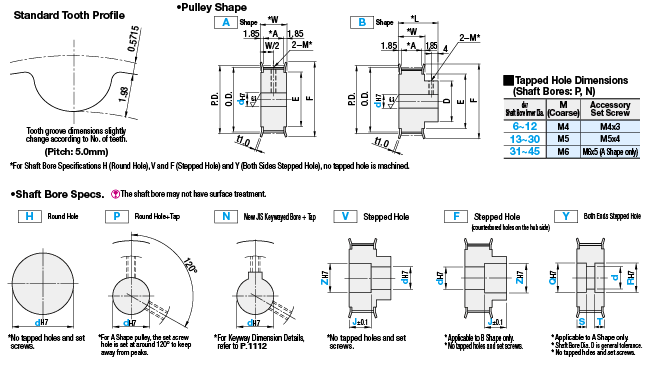

Since it has an arc tooth profile, it has little backlash and it is suitable for positioning applications.
[Material]
· Pulley: Aluminum alloy, S45C equivalent
· Flange: Aluminum alloy, SPCC
[Surface treatment]
· Clear anodize, black iron oxide coating
| Catalog No. | [ M ] Material | [ S ] Surface Treatment | |||
| Belt Width 9mm | Belt Width 12mm | Belt Width 15mm | Pulley | Flange | |
| A:10.3 W:14.0 L:22.0 | A:13.3 W:17.0 L:25.0 | A:16.3 W:20.0 L:28.0 | |||
| GPA__GT5090 | GPA__GT5120 | GPA__GT5150 | 2017 Aluminum Alloy (Duralumin) | A5052 | Clear Anodize |
| GPT__GT5090 | GPT__GT5120 | GPT__GT5150 | S45C | SPCC | - |
| GPM__GT5090 | GPM__GT5120 | GPM__GT5150 | Black Oxide | ||
[ ! ] Due to vibrations during transportation, the set screw may become detached from the main body.
