Variable Self-Weight Anti-Backlash

Specifications and Features

Purpose/Function

Transport/Movement Setup

Anti-backflow operation by self-weight.
The position of the anti-backflow mechanism can be adjusted according to the size of the workpiece.
The anti-backflow mechanism activates to hold products in the tray before sending them to the next process, preventing them from being pushed out.
The anti-backflow mechanism is held upright by a magnet. When a tray passes, the magnet detaches due to the tray's weight, allowing it to pass through.
After passing, it stands upright under its own weight and is fixed with a magnet.

※ This example is for design reference only. Equipment components may differ from the actual shape.

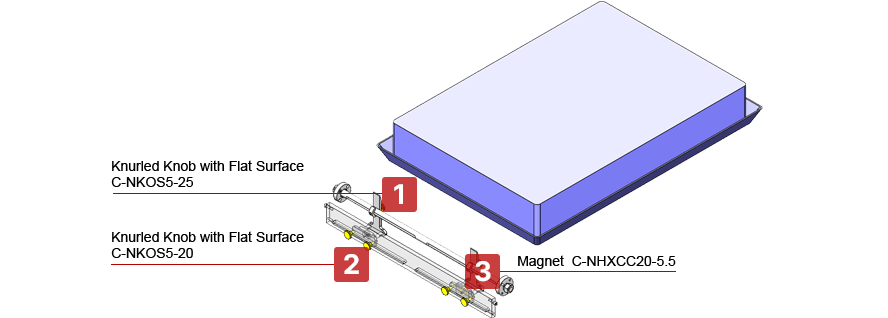

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Knurled Knob with Flat Surface	C-NKOS5-25	Mounting part type: Male thread (with shoulder) Mounting part diameter (M): M5 Material: Stainless steel Surface treatment: Wire drawing	2	SGD 6.67/Unit
②	Knurled Knob with Flat Surface	C-NKOS5-20	Mounting part type: Male thread (with shoulder) Mounting part diameter (M): M5 Material: Stainless steel Surface treatment: Wire drawing	4	SGD 5.89/Unit
③	Magnet	C-NHXCC20-5.5	Adhesion force (N): 50.1~60.0 Adhesion force (N): 54.8 Magnet type (material): Neodymium magnet	2	SGD 5.10/Unit

※ Kindly check MISUMI eCatalog for latest information.
