Slim Simple Manual 3-Axis Unit

Specifications and Features

Purpose/Function

Positioning/Clamp

Thin 3-axis unit using trapezoidal screws.
Adjust the table position horizontally and vertically by turning the handle.
Easy operation using lever-mounted handle

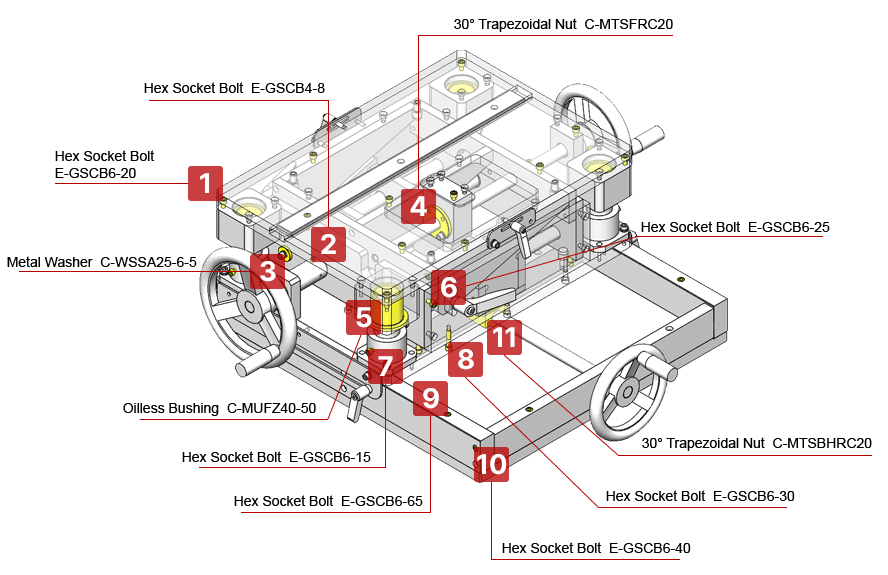

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Hex Socket Bolt	E-GSCB6-20	Screw nominal (M): 6 Length L(mm): 20 Material: Stainless steel RoHS10 compliant	55	SGD 0.12/Unit
②	Hex Socket Bolt	E-GSCB4-8	Screw nominal (M): 4 Length L(mm): 8 Material: Stainless steel RoHS10 compliant	6	SGD 0.07/Unit
③	Metal Washer	C-WSSA25-6-5	Outer diameter D(mm): 25 Inner diameter V(mm): 6 Material: Steel Surface treatment: Trivalent chromate bright finish	4	SGD 0.70/Unit
④	30° Trapezoidal Nut	C-MTSFRC20	Screw nominal diameter D(φ): 20 Pitch(mm): 4 Material: Copper alloy Surface treatment: None	1	SGD 31.72/Unit
⑤	Oilless Bushing	C-MUFZ40-50	Inner diameter d(φ): 40 Total length L(mm): 50 Material: Brass Operating temperature range (°C): -40 to 150	4	SGD 19.69/Unit
⑥	Hex Socket Bolt	E-GSCB6-25	Screw nominal (M): 6 Length L(mm): 25 Material: Stainless steel RoHS10 compliant	10	SGD 0.14/Unit
⑦	Hex Socket Bolt	E-GSCB6-15	Screw nominal (M): 6 Length L(mm): 15 Material: Stainless steel RoHS10 compliant	18	SGD 0.10/Unit
⑧	Hex Socket Bolt	E-GSCB6-30	Screw nominal (M): 6 Length L(mm): 30 Material: Stainless steel RoHS10 compliant	16	SGD 0.23/Unit
⑨	Hex Socket Bolt	E-GSCB6-65	Screw nominal (M): 6 Length L(mm): 65 Material: Stainless steel RoHS10 compliant	12	SGD 0.34/Unit
⑩	Hex Socket Bolt	E-GSCB6-40	Screw nominal (M): 6 Length L(mm): 40 Material: Stainless steel RoHS10 compliant	12	SGD 0.20/Unit
⑪	30° Trapezoidal Nut	C-MTSBHRC20	Screw nominal diameter D(φ): 20 Pitch(mm): 4 Material: Copper alloy Surface treatment: None	1	SGD 57.60/Unit

※ Kindly check MISUMI eCatalog for latest information.
