Electronic Component Transfer and Inspection Device

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp Inspection

Workpiece transfer and adjustment of inspection position.
Transfer the workpiece received from another transfer unit to the camera position, perform image inspection, and then transfer it downstream.
By using a hollow rotary actuator, the vacuum pipe can be discharged straight.

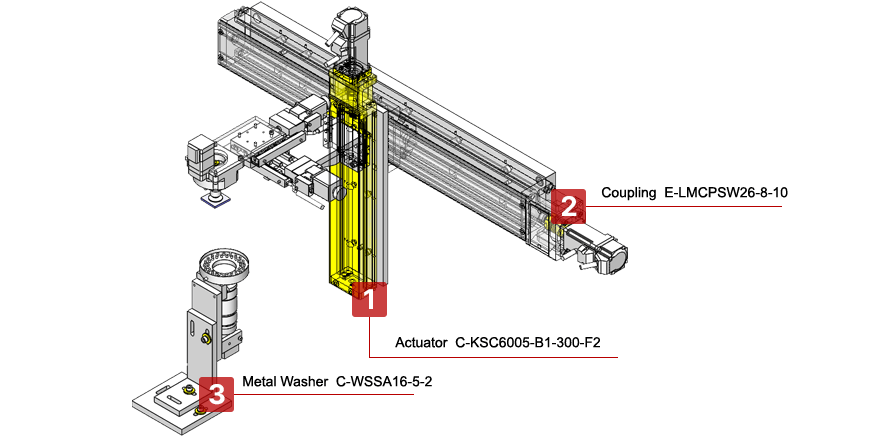

Electronic Component Transfer and Inspection Device

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Actuator	C-KSC6005-B1-300-F2	Drive method: Ball screw Cover: Yes Lead (mm): 5 Repetitive positioning accuracy (μm): ±10 Motor mounting type: In-line type	1	SGD 342.66/Unit
②	Coupling	E-LMCPSW26-8-10	Outer diameter A(φ): 26 Allowable torque(Nm): 1.5 Allowable eccentricity(mm): 0.15 Maximum rotational speed(r/min): 10000	1	SGD 10.80/Unit
③	Metal Washer	C-WSSA16-5-2	Outer diameter D(mm): 16 Inner diameter V(mm): 5 Material: Steel Surface treatment: Trivalent chromate bright finish	6	SGD 0.52/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Double Disc Couplings Set Screw Type SGD 6.40 /Unit Shipping: 5 Days

2 Single Axis Actuators KS60 Standard/KSC60 With Cover SGD 291.51 /Unit Shipping: 5 Days

3 Flat Washers SGD 0.35 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
