Door Interlocking Lifter

Specifications and Features

Purpose/Function

Transport/Movement

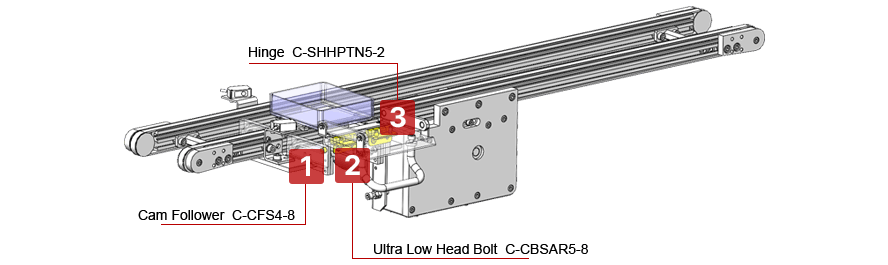

When removing the work tray transported by the belt conveyor within the device, the box can be easily removed without touching the belt.
In conjunction with the door, the work tray is lifted onto the belt and moved towards the door.
Can be applied in narrow spaces because the door can be made smaller.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Cam Follower	C-CFS4-8	Screw part nominal (M)(mm): M4×0.7 Material: Stainless steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): 0.57 Allowable rotational speed (rpm): 750	4	SGD 18.49/Unit
②	Ultra Low Head Bolt	C-CBSAR5-8	Width (W)(mm): 36 Length (mm): 41 Main body material: Steel Main body surface treatment: Chrome plating	8	SGD 10.52/Unit
③	Hinge	C-SHHPTN5-2	Width (W)(mm): 48 Length (mm): 41 Main body material: Steel Main body surface treatment: Chrome plating	2	SGD 2.68/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Miniature Cam Followers SGD 8.26 /Unit Shipping: Same Day

2 Ultra Low Cross Recessed Flat Head Screws SGD 7.30 /Unit Shipping: Same Day

3 Stainless Steel / Steel Hinges SGD 2.68 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
