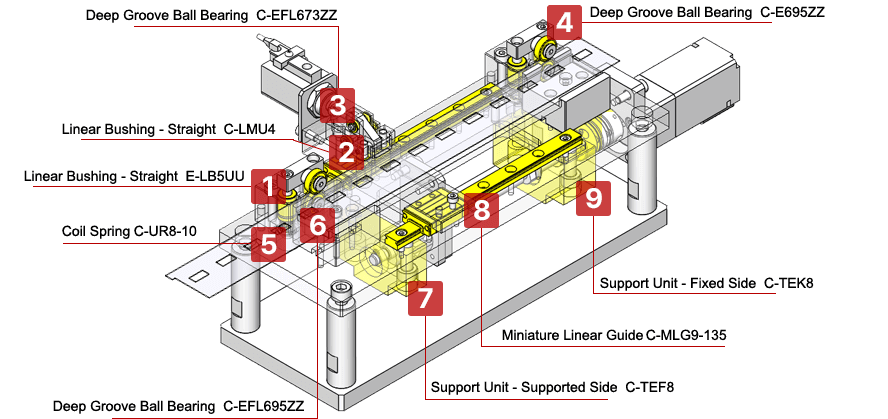

Hoop Repetitive Transfer Unit
Specifications and Features
- Purpose/Function
-
Transport/Movement
Positioning/Clamp
Applied to hoop material transport mechanism in automated equipment.
Mechanism that repeatedly moves a hoop, pressed from above by a cylinder, using a stepper motor and ball screw.
Mechanism providing precise pitch movement using a stepper motor and linear guide.
Mechanism that repeatedly moves a hoop, pressed from above by a cylinder, using a stepper motor and ball screw.
Mechanism providing precise pitch movement using a stepper motor and linear guide.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Linear Bushing - Straight | E-LB5UU | Inner circle diameter dr(φ) : 5 Total Length L(mm): 15 Outer tube material: Iron Outer tube surface treatment: None |
4 | SGD 3.71/Unit |
| ② | Linear Bushing - Straight | C-LMU4 | Inner circle diameter dr(φ) : 4 Total Length L(mm): 12 Outer tube material: Iron Outer tube surface treatment: None |
2 | SGD 2.15/Unit |
| ③ | Deep Groove Ball Bearing | C-EFL673ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 146 Allowable rotational speed (RPM): 44000 |
4 | SGD 1.84/Unit |
| ④ | Deep Groove Ball Bearing | C-E695ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 756 Allowable rotational speed (RPM): 30000 |
2 | SGD 1.00/Unit |
| ⑤ | Coil Spring | C-UR8-10 | Outer diameter D(φ): 8 Free length L(mm): 10 Maximum load (N): 1.8 Spring constant (N/mm): 0.29 |
4 | SGD 0.42/Unit |
| ⑥ | Deep Groove Ball Bearing | C-EFL695ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 756 Allowable rotational speed (RPM): 30000 |
2 | SGD 1.62/Unit |
| ⑦ | Support Unit - Supported Side | C-TEF8 | Type: Support side Shaft diameter D(φ): 6 Material: Steel Surface treatment: Black oxide coating |
1 | SGD 8.20/Unit |
| ⑧ | Miniature Linear Guide | C-MLG9-135 | Mounting height H(mm): 10 Length L(mm): 135 Rail type: Standard rail Guide rail material: Carbon steel Block material: Carbon steel |
2 | SGD 14.88/Unit |
| ⑨ | Support Unit - Fixed Side | C-TEK8 | Type: Fixed side Shaft diameter D(φ): 8 Material: Steel Surface treatment: Black oxide coating |
1 | SGD 23.10/Unit |
※ Kindly check MISUMI eCatalog for latest information.
Product List
1![Linear Bushing - Standard, Single[RoHS Compliant]](/pr/vona/eco_design/images/110302580750.jpg)
2
3
4
5
6
7
8
※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
