Cylindrical Work Holder

Specifications and Features

Purpose/Function

Positioning/Clamp Setup

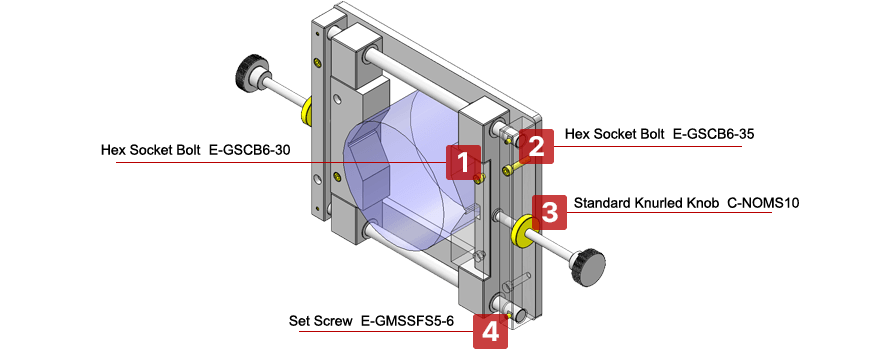

Work holder with a movable clamp section to accommodate cylindrical workpieces of different diameters.
V-block operating range is set based on workpiece size variability using a guide structure combining shaft and oil-free bushing.
Knurled knob selected to improve clamp operability.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Hex Socket Bolt	E-GSCB6-30	Screw nominal (M): 6 Length L(mm): 30 Material: Stainless steel RoHS10 compliant	4	SGD 0.23/Unit
②	Hex Socket Bolt	E-GSCB6-35	Screw nominal (M): 5 Length L(mm): 15 Material: Stainless steel RoHS10 compliant	4	SGD 0.22/Unit
③	Standard Knurled Knob	C-NOMS10	Mounting part type: Female thread Mounting part diameter (M): M10 Material: Stainless steel Surface treatment: Wire drawing	2	SGD 6.20/Unit
④	Set Screw	E-GMSSFS5-6	Screw nominal (M): 5 Length L(mm): 6 Material: Stainless steel RoHS10 compliant	4	SGD 0.04/Unit

※ Kindly check MISUMI eCatalog for latest information.
