Automatic Clamp Jig

Specifications and Features

Purpose/Function

Positioning/Clamp Setup

The process of setting the workpiece, clamping it, and then machining a hole.

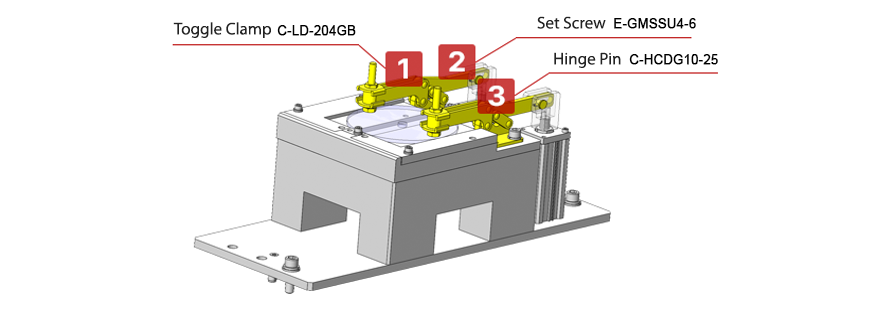

An automated mechanism with a support jig structure that allows pallet jig replacement based on workpiece type, with synchronized cylinder and toggle clamp operations.
Toggle clamps with a large opening angle are selected to facilitate workpiece loading and unloading

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Toggle Clamp	C-LD-204GB	Clamp bolt size : M12 Material : Steel (body), Steel (bolt) Clamping pressure (N) : 6,300	2	SGD 13.80/Unit
②	Set Screw	E-GMSSU4-6	Screw nominal (M): 4 Length L(mm): 6 Material: Stainless steel RoHS10 compliant	4	SGD 0.07/Unit
③	Hinge Pin	C-HCDG10-25	Shaft diameter D(mm): 10 L dimension (mm): 25 Material: Steel Surface treatment: Black oxide coating	2	SGD 2.14/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Toggle Clamps Horizontal, Hold Down Pressure 6300N, Standard SGD 13.80 /Unit Shipping: Same Day

2 Hex Socket Set Screws - Cup Point, Stainless Steel[RoHS Comliant] SGD 0.02 /Unit Shipping: 4 Days

3 Pivot Pins Shouldered With Retaining Ring Groove SGD 1.00 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
