Escape Shutter by Cam and Link

Specifications and Features

Purpose/Function

Transport/Movement

The workpiece is transported by a conveyor, and the chuck is moved smoothly using a rotation-preventing cylinder.
The cam follower moves smoothly along the cam's groove.

※ This example is for design reference only. Equipment components may differ from the actual shape.

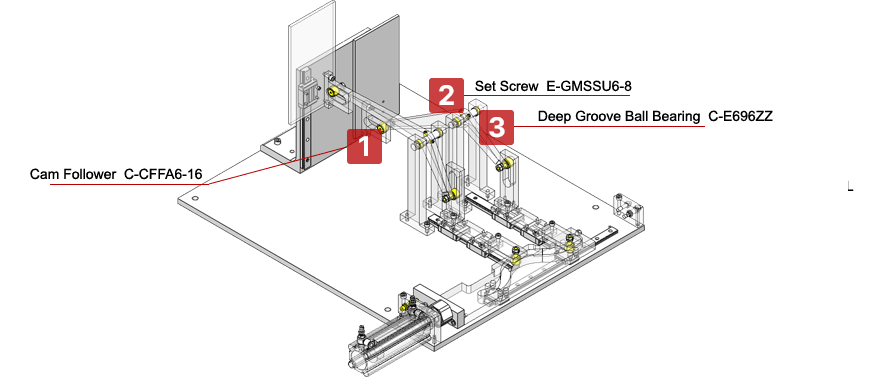

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Cam Follower	C-CFFA6-16	Screw part nominal (M)(mm): M6×1.0 Material: Carbon steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): 3.15 Allowable rotational speed (rpm): 14000	6	SGD 7.51/Unit
②	Set Screw	E-GMSSU6-8	Screw nominal (M): 6 Length L(mm): 8 Material: Stainless steel RoHS10 compliant	4	SGD 0.08/Unit
③	Deep Groove Ball Bearing	C-E696ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 945 Allowable rotational speed (RPM): 28000	4	SGD 1.11/Unit

※ Kindly check MISUMI eCatalog for latest information.
