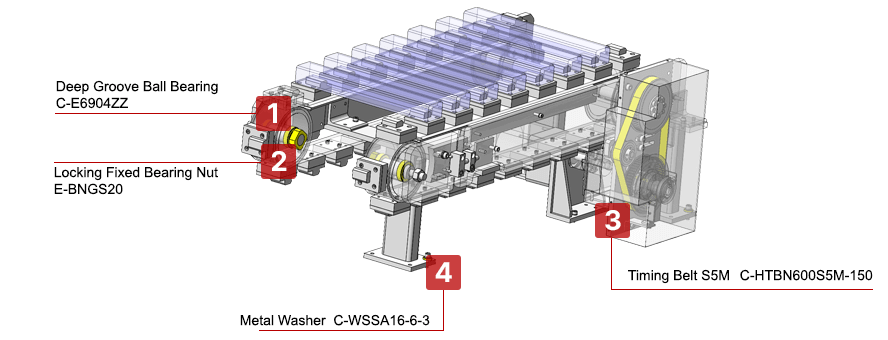

Auxiliary Belt Pitch Transfer Conveyor

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp

A conveyor that transports workpieces directly on an accessory belt
Pitch transfer is performed by index control.
Reduces the number of parts and eliminates the need for pallets by using accessory belts, removing the need for transport controls.
Parts are designed to allow assembly of the pulley groove and keyway together to minimize pitch error.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Deep Groove Ball Bearing	C-E6904ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 4480 Allowable rotational speed (RPM): 8000	6	SGD 1.80/Unit
②	Locking Fixed Bearing Nut	E-BNGS20	Screw nominal (M): M20×2.5 Material: Stainless steel Surface treatment: None Screw type: Metric (standard) thread	2	SGD 5.90/Unit
③	Timing Belt S5M	C-HTBN600S5M-150	Belt type: S5M Belt material: Chloroprene rubber Belt type: Circular tooth super torque Belt width (mm): 15 Number of teeth: 120	1	SGD 4.06/Unit
④	Metal Washer	C-WSSA16-6-3	Outer diameter D(mm): 16 Inner diameter V(mm): 6 Material: Steel Surface treatment: Trivalent chromate bright finish	12	SGD 0.52/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Ball Bearings SGD 1.02/Unit Shipping: Same Day

2 Loosening Prevention Nuts for Bearing SGD 2.43/Unit Shipping: Same Day

3 Timing Belt S5M SGD 1.52/Unit Shipping: Same Day

4 Flat Washers SGD 0.35/Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
