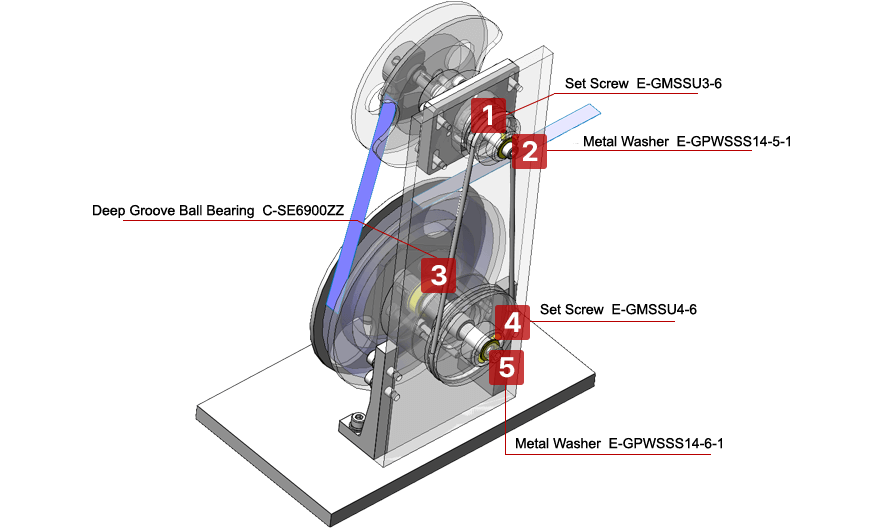

Tape Winding Jig
Specifications and Features
- Purpose/Function
-
Transport/Movement
Positioning/Clamp
Setup
A device for winding the release paper while separating the tape portion and release paper portion of double-sided tape.
The tape body is wound around the lower pulley, and the release paper is wound around the upper pulley by pulling the tape.
The lower and upper pulleys are connected by a circular belt, and the difference in rotation is absorbed by the 'slip part' of the belt.
A manual mechanism where the pulley on the main body rotates by pulling the tape of the double-sided tape, and the pulley on the release paper side rotates through a round belt.
The tape body is wound around the lower pulley, and the release paper is wound around the upper pulley by pulling the tape.
The lower and upper pulleys are connected by a circular belt, and the difference in rotation is absorbed by the 'slip part' of the belt.
A manual mechanism where the pulley on the main body rotates by pulling the tape of the double-sided tape, and the pulley on the release paper side rotates through a round belt.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Set Screw | E-GMSSU3-6 | Screw nominal (M): 3 Length L(mm): 6 Material: Stainless steel RoHS10 compliant |
2 | SGD 0.06/Unit |
| ② | Metal Washer | E-GPWSSS14-5-1 | Outer diameter D(mm): 14 Inner diameter V(mm): 5 Material: Stainless steel Surface treatment: None RoHS10 compliant |
1 | SGD 0.38/Unit |
| ③ | Deep Groove Ball Bearing | C-SE6900ZZ | Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Stainless steel Basic dynamic load rating (N): 1360 Allowable rotational speed (RPM): 8000 |
1 | SGD 1.56/Unit |
| ④ | Set Screw | E-GMSSU4-6 | Screw nominal (M): 4 Length L(mm): 6 Material: Stainless steel RoHS10 compliant |
2 | SGD 0.07/Unit |
| ⑤ | Metal Washer | E-GPWSSS14-6-1 | Outer diameter D(mm): 14 Inner diameter V(mm): 6 Material: Stainless steel Surface treatment: None RoHS10 compliant |
1 | SGD 0.38/Unit |
※ Kindly check MISUMI eCatalog for latest information.
Product List
![Hex Socket Set Screws - Cup Point, Stainless Steel[RoHS Comliant]](/pr/vona/eco_design/images/110310926189.jpg)
2![Metal Washer - Press Formed [RoHS Comliant]](/pr/vona/eco_design/images/110310861299.jpg)
3
4
※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
