Lifting and Sliding Table for Work Transfer

Specifications and Features

Purpose/Function

Transport/Movement

Transfer the workpiece to the inspection stage of the next process.
Set up the workpiece on the table and move it to the inspection position.
The table stops during descent to receive the workpiece, then descends completely after handover.
Selecting a Timing Belt Capable of Handling the Transfer Mass and Power.

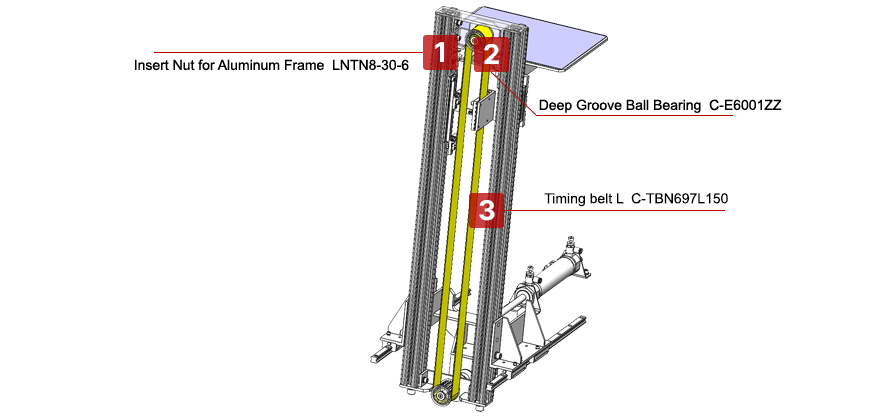

Lifting and Sliding Table for Work Transfer

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Insert Nut for Aluminum Frame	LNTN8-30-6	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 3570 Allowable rotational speed (RPM): 8000	10	SGD 0.24/Unit
②	Deep Groove Ball Bearing	C-E6001ZZ	Screw nominal M(mm): M6 Frame specification: 3030 Surface treatment: Nickel plating	4	SGD 1.09/Unit
③	Timing belt L	C-TBN697L150	Belt type: L Belt material: Chloroprene rubber Belt type: Square tooth circle Belt width (mm): 38.1 Number of teeth: 186	1	SGD 74.60/Unit
