Simple Rotating Stage

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp Setup

Simple rotating stage that can be adjusted in 5° increments
Simple angle adjustment of the workpiece is possible by manually rotating the stage and securing it with an index plunger.

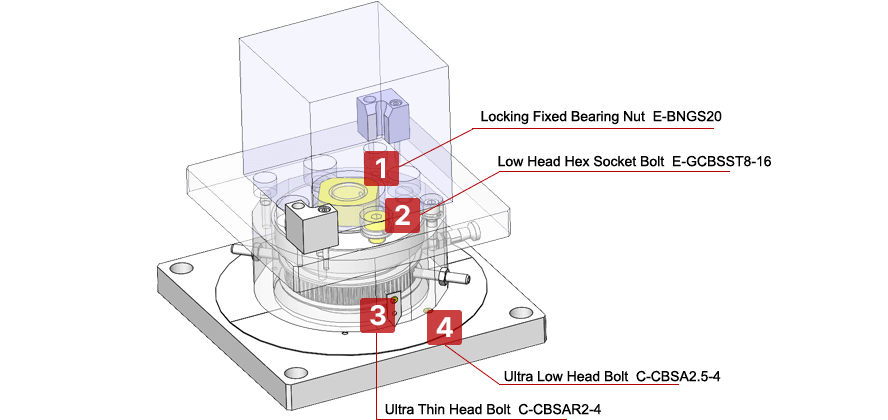

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Locking Fixed Bearing Nut	E-BNGS20	Screw nominal (M): M20×2.5 Material: Stainless steel Surface treatment: None Screw type: Metric (standard) thread	1	SGD 5.90/Unit
②	Low Head Hex Socket Bolt	E-GCBSST8-16	Screw nominal (M): 8 Length L(mm): 16 Material: Stainless steel RoHS10 compliant	4	SGD 0.32/Unit
③	Ultra Thin Head Bolt	C-CBSAR2-4	Screw nominal (M): 2 Length L(mm): 4 Material: Steel	4	SGD 7.30/Unit
④	Ultra Low Head Bolt	C-CBSA2.5-4	Screw nominal (M): 2.5 Length L(mm): 4 Material: Steel	4	SGD 7.30/Unit

※ Kindly check MISUMI eCatalog for latest information.
