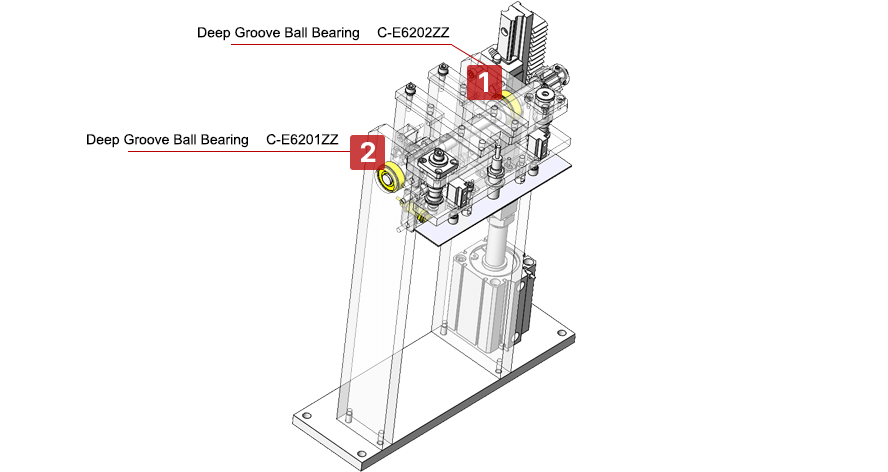

Work Inversion Mechanism

Specifications and Features

Purpose/Function

Transport/Movement Positioning/Clamp

The returned work is reversed behind the chuck with a magnet, and the unsprung weight after the reverse is released with a stopper and a cylinder in the chuck section.
Used to change work piece orientation during the manufacturing line.
The stopper of the work reversal mechanism is cushioned using a shock absorber.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Deep Groove Ball Bearing	C-E6202ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 5430 Allowable rotational speed (RPM): 8000	1	SGD 1.38/Unit
②	Deep Groove Ball Bearing	C-E6201ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 4270 Allowable rotational speed (RPM): 8000	2	SGD 1.20/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Ball Bearings SGD 1.02/Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
