Two-Axis Synchronous Mechanism Using a Link

Specifications and Features

Purpose/Function

Positioning/Clamp

This design uses a link mechanism to perform chucking or centering with synchronized linear motion across two axes.
By adopting a linear guide, the design reduces height and the number of parts compared to using linear bushings.
It also achieves two-axis synchronization with a single drive source, making it a more cost-effective solution.

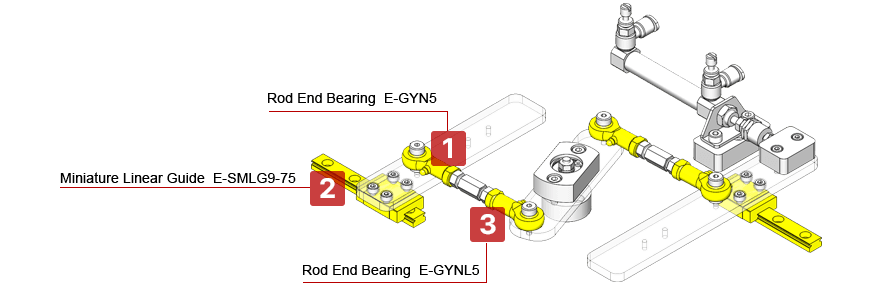

Two-Axis Synchronous Mechanism Using a Link

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Rod End Bearing	E-GYN5	Main body material: Steel Connection screw M: M5×0.8 Connection screw direction: Right-hand thread	2	SGD 1.80/Unit
②	Miniature Linear Guide	E-SMLG9-75	Mounting height H(mm): 10 Length L(mm): 75 Rail type: Standard rail Guide rail material: Stainless steel Block material: Stainless steel	2	SGD 22.10/Unit
③	Rod End Bearing	E-GYNL5	Main body material: Steel Connection screw M: M5×0.8 Connection screw direction: Left-hand thread	2	SGD 1.80/Unit

※ Kindly check MISUMI eCatalog for latest information.
