Adhesive Edge Stacking Jig

Specifications and Features

Purpose/Function

Ejection/Accumulation Assembly/Processing

Simple stacking using screw heads and holes.
A jig for holding the product under constant spring-loaded pressure for an extended period to allow adhesive curing.

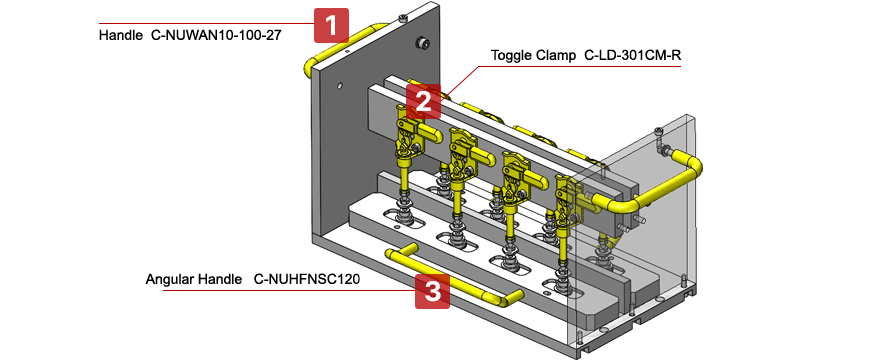

A structure where workpieces with applied adhesive are placed on a work tray and secured with a toggle clamp and a spring-loaded metal tip device. The jigs can be stacked to save space.
Environment/Operability: Manual mechanism with toggle clamp action.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Handle	C-NUWAN10-100-27	Mounting Pitch L(mm): 100 Material: Steel Surface treatment: Chrome plating	2	SGD 2.06/Unit
②	Toggle Clamp	C-LD-301CM-R	Clamp bolt size : M4 Material: Steel (body), Steel + rubber pad (bolt) Clamping pressure (N) : 500	8	SGD 6.80/Unit
③	Angular Handle	C-NUHFNSC120	Mounting pitch L(mm): 120 Material: Stainless steel Surface treatment: Buff polishing	2	SGD 6.38/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Handles Round Bar SGD 2.06 /Unit Shipping: Same Day

2 Toggle Clamps Side Push Type, 500N, Right Side SGD 6.80 /Unit Shipping: Same Day

3 Handle Small Diameter Angled Type SGD 5.16 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
