Control Box Door Mechanism

Specifications and Features

Purpose/Function

Main Body/Structure

Improved workability with rotating control box.
A mechanism that rotates like a door for each control box. The control box contains a control panel, with power wired through the outlet.
Environment/Operability: Mount the hinge on the frame and rotate the control box."

※ This example is for design reference only. Equipment components may differ from the actual shape.

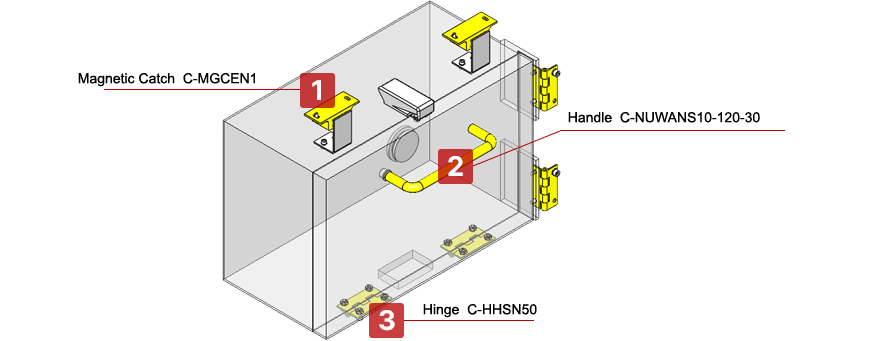

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Magnetic Catch	C-MGCEN1	Holding force, tensile force (N): 53.93 Main body material: Stainless steel Magnet material: Ferrite	2	SGD 3.38/Unit
②	Handle	C-NUWANS10-120-30	Mounting pitch L(mm): 120 Material: Stainless steel Surface treatment: Buff polishing	1	SGD 2.82/Unit
③	Hinge	C-HHSN50	Width (W)(mm): 30 Length (mm): 50 Main body material: Stainless steel Main body surface treatment: Shot blast	4	SGD 2.74/Unit
