Low-Impact, Constant Force Manual Clamp Mechanism

Specifications and Features

Purpose/Function

Positioning/Clamp

Clamp for shock-sensitive workpieces - glass substrates.
When the arm with the knob is knocked down, the pin (set of adjusting screws) mounted on the arm contacts the tapered portion of the inner shaft through the link base window.
Environment/Operability: Manually operated clamps, used for testing.

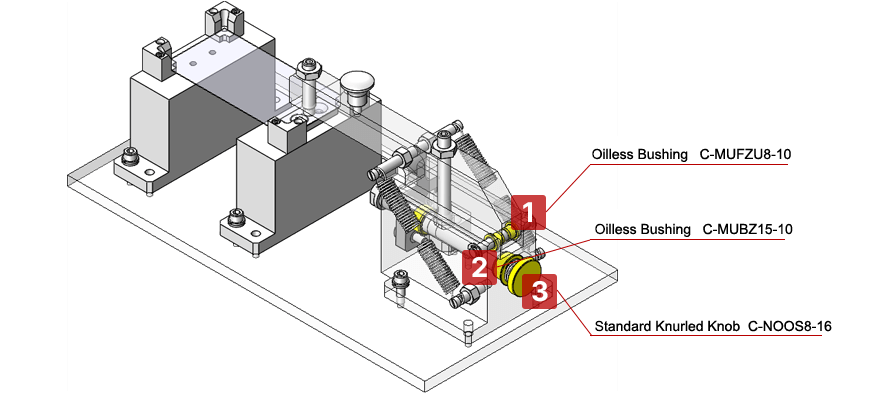

Low-Impact, Constant Force Manual Clamp Mechanism

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Oilless Bushing	C-MUFZU8-10	Inner diameter d(φ): 10 Total length L(mm): 10 Material: Brass Operating temperature range (°C): -40 to 150	2	SGD 7.38/Unit
②	Oilless Bushing	C-MUBZ15-10	Inner diameter d(φ): 15 Total length L(mm): 10 Material: Brass Operating temperature range (°C): -40 to 150	2	SGD 2.81/Unit
③	Standard Knurled Knob	C-NOOS8-16	Mounting part type: Male thread Mounting part diameter (M): M8 Material: Stainless steel Surface treatment: Wire drawing	1	SGD 6.17/Unit
