Fixation Confirmation Mechanism for Maintenance Parts
Specifications and Features
- Purpose/Function
-
Body/Structure
Safety

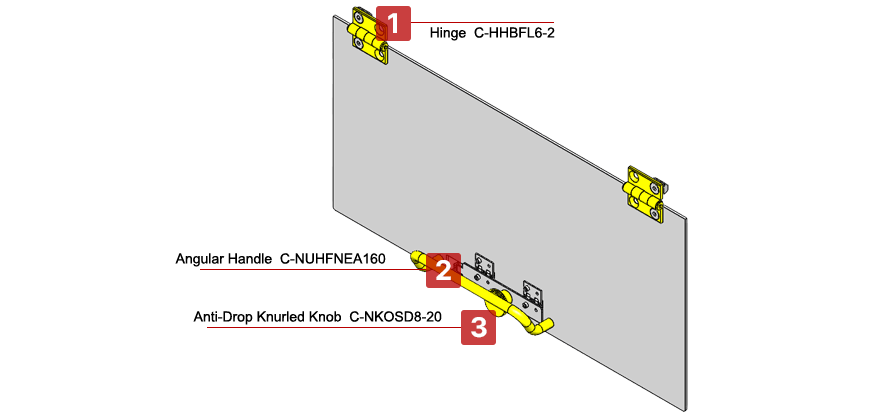

Sensor dog position adjustment using a spring hinge.
Prevents maintenance door from failing to close or lock.
After closing the maintenance door, secure the bracket connected to the spring hinge with the anti-fall knurled knob.
Part of the bracket is blocked by the open/close confirmation sensor.
When the knurled knob that holds the door in place is removed, the bracket and knurled knob spring up with the spring hinge, cutting off the light from the open/close confirmation sensor.
Prevents maintenance door from failing to close or lock.
After closing the maintenance door, secure the bracket connected to the spring hinge with the anti-fall knurled knob.
Part of the bracket is blocked by the open/close confirmation sensor.
When the knurled knob that holds the door in place is removed, the bracket and knurled knob spring up with the spring hinge, cutting off the light from the open/close confirmation sensor.
※ This example is for design reference only. Equipment components may differ from the actual shape.
| No. | Component | Economy Type Number | Specification | Quantity | Unit Price |
|---|---|---|---|---|---|
| ① | Hinge | C-HHBFL6-2 | Width (W)(mm): 48 Length (mm): 47 Main body material: Aluminum Main body surface treatment: Black anodizing |
2 | SGD 3.04/Unit |
| ② | Angular Handle | C-NUHFNEA160 | Mounting pitch L(mm): 160 Material: Aluminum alloy Surface treatment: Anodizing |
1 | SGD 8.86/Unit |
| ③ | Anti-Drop Knurled Knob | C-NKOSD8-20 | Mounting part type: Male thread (with shoulder) Mounting part diameter (M): M8 Material: Stainless steel Surface treatment: Wire drawing |
1 | SGD 11.82/Unit |
※ Kindly check MISUMI eCatalog for latest information.
Product List
1
2
3
※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
