Work Transfer Jig Change Mechanism

Specifications and Features

Purpose/Function

Positioning/Clamp Drive/Actuation

Automatic locking after changing jig settings using an electronic holder.
The workpiece fixing jig settings are changed because it's a device that assembles various types of workpieces.
The setting change is carried out by a 6-axis robot that also handles workpiece transfer.
Due to payload limitations, it's not possible to install a mechanism to bolt the jig.
Maintain jig suction using magnetic force.
Environment/Operability: Change and maintain settings without using bolts.

※ This example is for design reference only. Equipment components may differ from the actual shape.

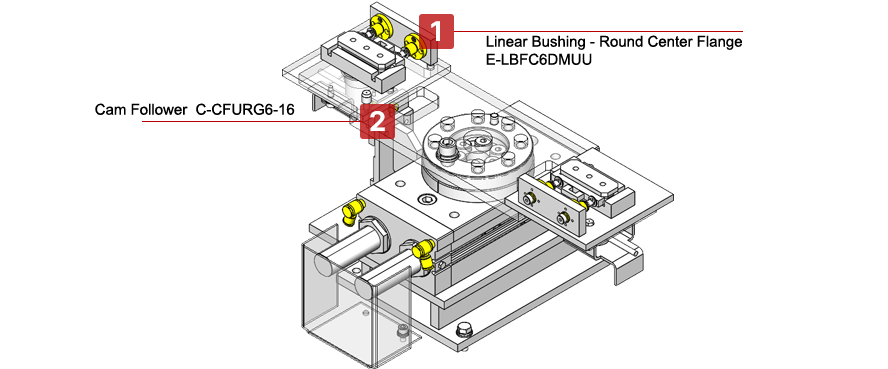

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Linear Bushing - Round Center Flange	E-LBFC6DMUU	Inner circle diameter dr(φ): 6 Total Length L(mm): 29 Outer tube material: Iron Outer tube surface treatment: Electroless nickel plating	4	SGD 18.21/Unit
②	Cam Follower	C-CFURG6-16	Screw part nominal (M)(mm): M6×1 Material: Carbon steel Fastening method: With screwdriver slot Basic load rating Cr(dynamic)(kN): 4.9 Allowable rotational speed (rpm): 3800	1	SGD 6.60/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Round, Center Flanged Linear Bushings, Medium SGD 18.21 /Unit Shipping: 5 Days

2 Cam Followers Straight Slot, Crown SGD 6.60 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
