Hand with Changed Opening Amount of Left and Right Hooks

Specifications and Features

Purpose/Function

Positioning/Clamp Inspection Drive/Actuation

This is a design example of a hand mechanism that changes the opening amount of the left and right hooks using chucks with different opening angles on each side. It positions the unaligned workpieces to inspect their appearance. Components used: ball bearing, oil-free bushing, parallel key. Used for positioning/clamping, inspection/measurement, and driving purposes.

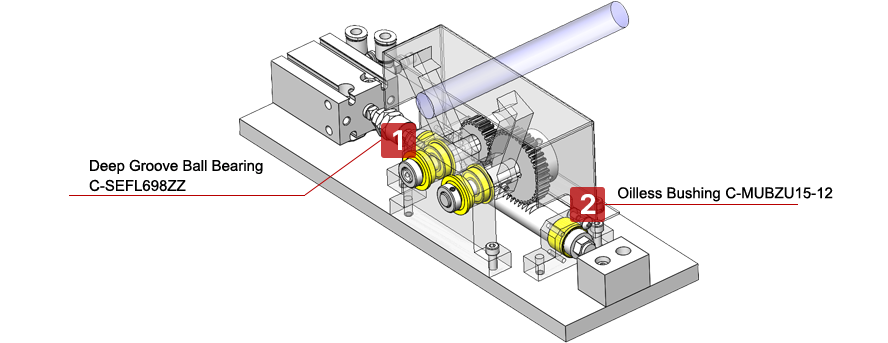

Hand with Changed Opening Amount of Left and Right Hooks

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Deep Groove Ball Bearing	C-SEFL698ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Stainless steel Basic dynamic load rating (N): 1131 Allowable rotational speed (RPM): 8000	4	SGD 1.93/Unit
②	Oilless Bushing	C-MUBZU15-12	Inner diameter d(φ): 15 Total length L(mm): 12 Material: Brass Operating temperature range (°C): -40 to 150	2	SGD 6.25/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Flanged Small Ball Bearings Stainless Steel SGD 1.80 /Unit Shipping: Same Day

3 Oil Free Bushings Copper Alloy Straight I.D.F7/O.D.m6 SGD 2.11 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
