Probe Jig Change

Specifications and Features

Purpose/Function

Inspection/Measurement Setting

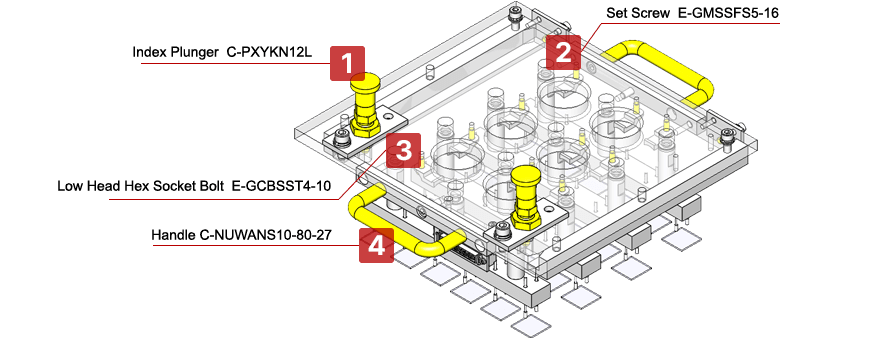

Positioning the probe jig with an index plunger.
A probe jig for handling various workpieces. The position is determined using a jig guide and a fixing screw, and locked with an index plunger.
Guide the probe jig with an L-shaped component for removal, and allow slide direction adjustment using a fixing screw.
Use a tie band fixing jig to allow for wiring organization.
Environment/Operability: When inserting the jig into the main body, hold the handle with one hand and support the extraction hole part with the other hand.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Index Plunger	C-PXYKN12L	Lock mechanism: Rest position type Main body material: Steel Tip material: Steel Stroke S(mm): 10	2	SGD 9.66/Unit
②	Set Screw	E-GMSSFS5-16	Screw nominal (M): 5 Length L(mm): 16 Material: Stainless steel RoHS10 compliant	2	SGD 0.12/Unit
③	Low Head Hex Socket Bolt	E-GCBSST4-10	Screw nominal (M): 4 Length L(mm): 10 Material: Stainless steel RoHS10 compliant	10	SGD 0.06/Unit
④	Handle	C-NUWANS10-80-27	Mounting pitch L(mm): 80 Material: Stainless steel Surface treatment: Buff polishing	2	SGD 2.28/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Index Plungers Standard, Fine Thread SGD 6.54 /Unit Shipping: Same Day

2 Hex Socket Set Screws - Flat End, Stainless Steel, Box / Single Item[RoHS Comliant] SGD 0.04 /Unit Shipping: 4 Days

3 Hex Socket Low Head Cap Screw - Stainless Steel, Small Box / Single Item Sale[RoHS Comliant] SGD 0.04 /Unit Shipping: 4 Days

4 Handles Round Bar SGD 2.06 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
