Guide Change Mechanism by Left and Right Screws

Specifications and Features

Purpose/Function

Transport/Move Positioning/Clamp Drive/Actuation

The guide of the transfer conveyor can be adjusted continuously by motor drive.
The guide is synchronized with the belt and left and right screws, and the guide width is controlled by the inverter.
Environment/Operability: Moves to the guide width set by the motor.

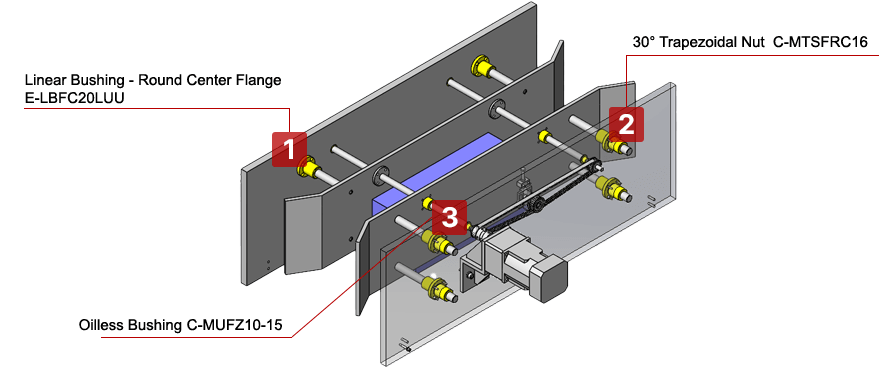

Guide Change Mechanism by Left and Right Screws

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Linear Bushing - Round Center Flange	E-LBFC20LUU	Inner circle diameter dr(φ): 20 Total Length L(mm): 80 Outer tube material: Iron Outer tube surface treatment: None	8	SGD 11.00/Unit
②	30° Trapezoidal Nut	C-MTSFRC16	Screw nominal diameter D(φ): 16 Pitch(mm): 3 Material: Copper alloy Surface treatment: None	2	SGD 22.34/Unit
③	Oilless Bushing	C-MUFZ10-15	Inner diameter d(φ): 14 Total length L(mm): 15 Material: Brass Operating temperature range (°C): -40 to 150	4	SGD 3.36/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Round, Center Flanged Linear Bushings, Double SGD 8.54 /Unit Shipping: Same Day

2 Lead Screw Nuts Flanged SGD 11.46 /Unit Shipping: Same Day

3 Oil Free Bushings Copper Alloy Shouldered I.D.E7/O.D.r6 SGD 2.78 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
