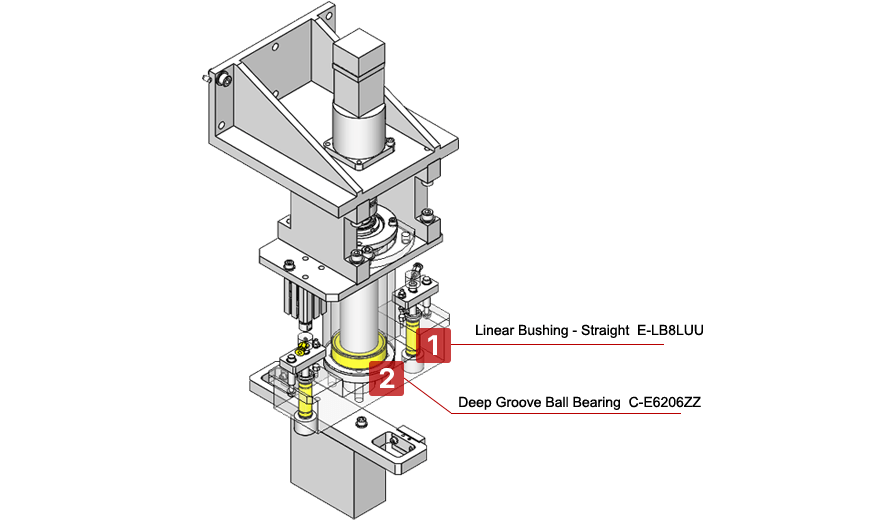

Swivel Vacuum Suction Head

Specifications and Features

Purpose/Function

Transport/Movement Assembly/Processing Drive/Actuation

Transfer of small parts, moving and pressing washers.
Vacuum-lift the washer, rotate 180°, transport to the press-fit area, and press onto the shaft with a cylinder.
Rotate -180° to pick up the next workpiece and return to the suction area.
The suction head motor is suspended from above because the workpiece supply index table is positioned at the bottom.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Linear Bushing - Straight	E-LB8LUU	Inner circle diameter dr(φ) : 8 Total Length L(mm): 45 Outer tube material: Iron Outer tube surface treatment: None	2	SGD 4.10/Unit
②	Deep Groove Ball Bearing	C-E6206ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 13650 Allowable rotational speed (RPM): 8000	1	SGD 3.67/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Linear Bushings Straight Single / Double SGD 1.56 /Unit Shipping: Same Day

2 Ball Bearing SGD 1.02 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
