One-Touch Mechanism for Changing Work Height Difference
Cost reduction with economical parts and design time reduction, quality assurance, cost reduction

Specifications and Features
Purpose/Function
Positioning/Clamp Settings

Easy to adjust manually.
Manually adjust height differences to clamp resin workpieces of various types.
Vertical shafts have grooves at different heights; positions are set by horizontal pins placed perpendicular to the shaft in these grooves.
To change height, press the horizontal pin and release the vertical shaft.

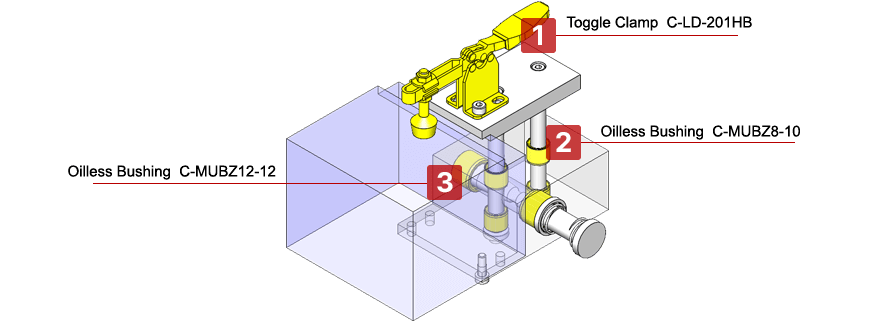

One-Touch Mechanism for Changing Work Height Difference
※ This example is for design reference only. Equipment components may differ from the actual shape.
No. Component Economy Type Number Specification Quantity Unit Price
Toggle Clamp C-LD-201HB Clamp bolt size: M5
Material: Steel (body), Steel + rubber pad (bolt)
Clamping pressure (N): 360
1 SGD 2.46/Unit
Oilless Bushing C-MUBZ8-10 Inner diameter d(φ): 8
Total length L(mm): 10
Material: Brass
Operating temperature range (°C): -40 to 150
4 SGD 2.36/Unit
Oilless Bushing C-MUBZ12-12 Inner diameter d(φ): 12
Total length L(mm): 12
Material: Brass
Operating temperature range (°C): -40 to 150
2 SGD 3.04/Unit
※ Kindly check MISUMI eCatalog for latest information.
※ The price on the product list is the starting price for that product.
    Product details (Price, leadtime and availability) may be subjected to updates.
    Kindly check MISUMI eCatalog for latest information.
