Traverse Mechanism for Heavy Workpieces

Specifications and Features

Purpose/Function

Transport/Movement Drive/Actuation

A traverse mechanism that converts rotary motion to linear motion, supports the load with a linear guide, and minimizes transfer power.

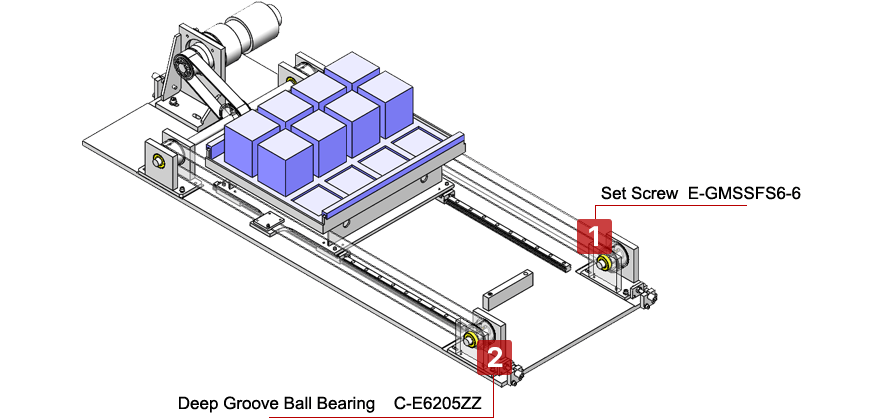

A shuttle mechanism that converts servo motor rotary motion to linear motion of a plate on a linear guide via shaft, pulley, and belt.

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Set Screw	E-GMSSFS6-6	Screw nominal (M): 6 Length L(mm): 6 Material: Stainless steel RoHS10 compliant	5	SGD 0.06/Unit
②	Deep Groove Ball Bearing	C-E6205ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring Material: Steel Basic dynamic load rating (N): 9800 Allowable rotational speed (RPM): 8000	8	SGD 2.44/Unit

※ Kindly check MISUMI eCatalog for latest information.

Product List

1 Hex Socket Set Screws - Flat End, Stainless Steel, Box / Single Item[RoHS Compliant] SGD 0.04 /Unit Shipping: 4 Days

2 Ball Bearing SGD 1.02 /Unit Shipping: Same Day

※ The price on the product list is the starting price for that product.
Product details (Price, leadtime and availability) may be subjected to updates.
Kindly check MISUMI eCatalog for latest information.
