Soldering Jig Corresponding to Work Size Deviation

Specifications and Features

Purpose/Function

Positioning/Clamp Assembly/Processing

" Reliable clamping to accommodate workpiece dimensional variations.
A jig that firmly holds the workpiece without gaps during soldering operations.
Composed of a fixed side on the left and a clamping side on the right; soldering is performed in positions with poor workability.
When selecting a toggle clamp, a lateral type is used for horizontal motion; the clamping force far exceeds the required load, ensuring no issues.
The fixed side (left) holding position is adjusted by the entry and exit of the floating joint at the tip of the toggle clamp.
The clamp plate on the clamping side (right) is in a free state, with a structure that can accommodate workpiece dimensional variations.
Environment/Operability: Manual mechanism with toggle clamps on both sides.

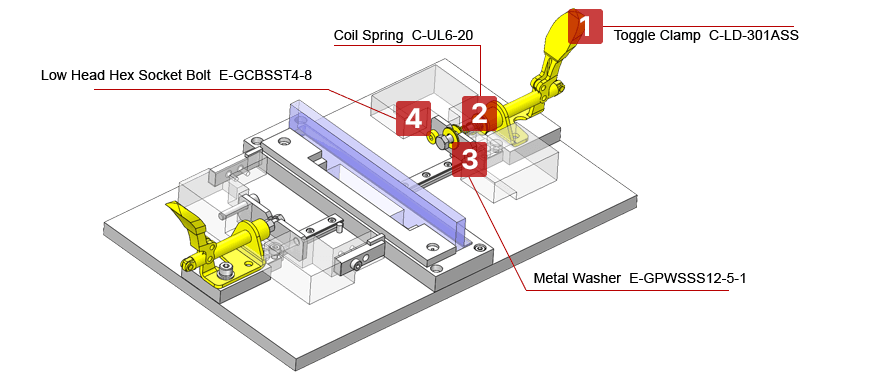

Soldering Jig Corresponding to Work Size Deviation

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Toggle Clamp	C-LD-301ASS	Clamp bolt size: M4 Material: Stainless steel (body), Stainless steel (bolt) Clamping pressure (N): 450	2	SGD 9.46/Unit
②	Coil Spring	C-UL6-20	Outer diameter D(φ): 6 Free length L(mm): 20 Maximum load (N): 7.8 Spring constant (N/mm): 0.98	1	SGD 0.50/Unit
③	Metal Washer	E-GPWSSS12-5-1	Outer diameter D(mm): 12 Inner diameter V(mm): 5 Material: Stainless steel Surface treatment: None RoHS10 compliant	3	SGD 0.35/Unit
④	Low Head Hex Socket Bolt	E-GCBSST4-8	Screw nominal (M): 4 Length L(mm): 8 Material: Stainless steel RoHS10 compliant	2	SGD 0.09/Unit

※ Kindly check MISUMI eCatalog for latest information.
