Polarizing Film Attachment Device for OLED Smartphones

Specifications and Features

Purpose/Function

Transport/Movement Assembly/Processing

Attaching polarizing film to OLED for smartphones.
For dust prevention, mechanical parts located above the workpiece are designed with dustproof specifications.
Environment/Operability:
① Place the work on the jig plate.
② Move the jig plate to the film winding device position.
③ Lower the suction unit to the film, then suction the film.
④ Move the suction unit horizontally to the work position.
⑤ Lower the suction unit to the work position, then release the film.
➅ Lower the roller, then raise the suction unit to the work height.
⑦ Move the suction unit horizontally to attach the film to the work.
⑧ Attach the film, then raise the roller.

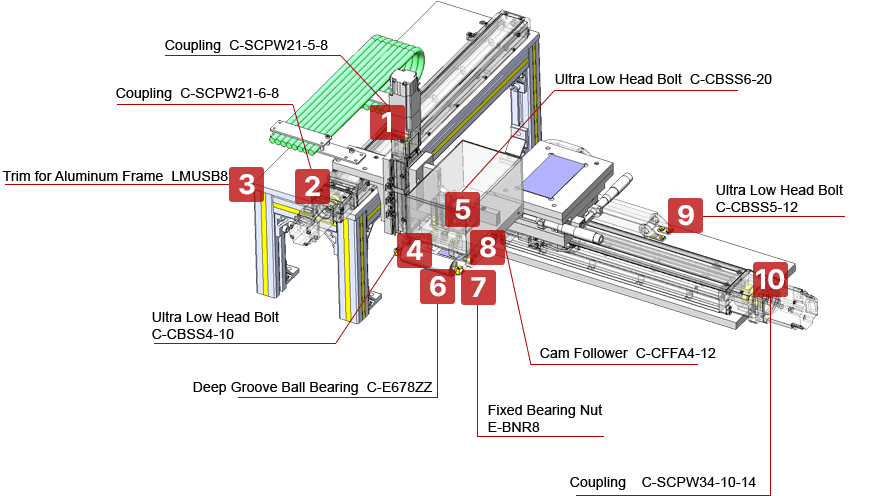

Polarizing Film Attachment Device for OLED Smartphones

※ This example is for design reference only. Equipment components may differ from the actual shape.

No.	Component	Economy Type Number	Specification	Quantity	Unit Price
①	Coupling	C-SCPW21-5-8	Outer diameter A(φ): 21 Allowable torque range (Nm): 0.05~1.00 Allowable eccentricity range (mm): 0.02~0.2 Maximum rotational speed (r/min): 10000	1	SGD 52.18/Unit
②	Coupling	C-SCPW21-6-8	Outer diameter A(φ): 21 Allowable torque range (Nm): 0.05~1.00 Allowable eccentricity range (mm): 0.02~0.2 Maximum rotational speed (r/min): 10000	1	SGD 52.18/Unit
③	Trim for Aluminum Frame	LMUSB8	Series: Groove width 8mm Length L(mm): 2000 Material: PVC	2	SGD 2.00/Unit
④	Ultra Low Head Bolt	C-CBSS4-10	Screw nominal (M): 4 Length L(mm): 10 Material: Steel	4	SGD 6.18/Unit
⑤	Ultra Low Head Bolt	C-CBSS6-20	Screw nominal (M): 6 Length L(mm): 20 Material: Steel	4	SGD 12.64/Unit
⑥	Deep Groove Ball Bearing	C-E678ZZ	Precision (JIS): Grade 0 Shield material/shape: Double-sealed type Inner/outer ring material: Steel Basic dynamic load rating (N): 380 Allowable rotational speed (RPM): 28000	2	SGD 1.18/Unit
⑦	Fixed Bearing Nut	E-BNR8	Screw nominal (M): M8×1.0 Material: Steel Surface treatment: Black oxide coating Screw type: Metric (fine) thread	2	SGD 3.86/Unit
⑧	Cam Follower	C-CFFA4-12	Screw part nominal (M)(mm): M4×0.7 Material: Carbon steel Fastening method: With hexagonal hole in head Basic load rating Cr(dynamic)(kN): 1.64 Allowable rotational speed (rpm): 20720	2	SGD 8.62/Unit
⑨	Ultra Low Head Bolt	C-CBSS5-12	Screw nominal (M): 5 Length L(mm): 12 Material: Steel	8	SGD 7.64/Unit
⑩	Coupling	C-SCPW34-10-14	Outer diameter A(φ): 34 Allowable torque range (Nm): 3.01~5.00 Allowable eccentricity range (mm): 0.02~0.2 Maximum rotational speed (r/min): 10000	1	SGD 67.73/Unit

※ Kindly check MISUMI eCatalog for latest information.
